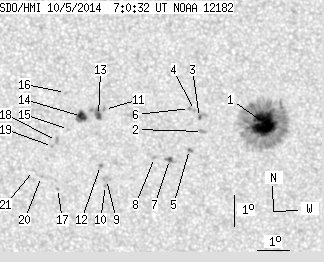

SDO HMI 2014-10-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.96 | 235.65 | 24.96 | 125.34 | -13.60 | 121.25 | -6.86 | 161.50 | 0.3648 | 400.7 | 229.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.37 | 183.95 | 19.81 | 97.51 | -13.50 | 122.27 | -5.84 | 163.85 | 0.3571 | 1315.2 | 394.6 | |
| 0.00 | 3.17 | 0.00 | 1.69 | -13.78 | 120.33 | -7.77 | 159.19 | 0.3714 | 833.0 | 641.6 | |
| 0.44 | 3.78 | 0.23 | 2.01 | -13.33 | 120.25 | -7.85 | 158.55 | 0.3651 | 920.0 | 720.3 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -13.11 | 120.10 | -8.00 | 157.95 | 0.3626 | 870.0 | 645.3 | |
| 0.35 | 2.29 | 0.19 | 1.23 | -14.36 | 119.90 | -8.20 | 158.73 | 0.3826 | -925.0 | -794.9 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -13.05 | 119.95 | -8.15 | 157.50 | 0.3626 | 848.0 | 631.4 | |
| 1.23 | 3.34 | 0.66 | 1.80 | -14.69 | 119.26 | -8.84 | 157.58 | 0.3914 | 1028.7 | 763.0 | |
| 0.00 | 1.93 | 0.00 | 1.04 | -14.63 | 118.80 | -9.31 | 156.46 | 0.3935 | 747.0 | 476.5 | |
| 0.00 | 3.78 | 0.00 | 2.06 | -15.37 | 117.25 | -10.86 | 153.90 | 0.4146 | -812.0 | -779.9 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -15.57 | 117.20 | -10.90 | 154.02 | 0.4177 | -775.0 | -691.2 | |
| 0.00 | 1.67 | 0.00 | 0.89 | -13.13 | 117.29 | -10.81 | 151.33 | 0.3824 | -888.0 | -792.1 | |
| 0.00 | 1.58 | 0.00 | 0.86 | -14.93 | 117.08 | -11.02 | 153.05 | 0.4094 | -1017.0 | -814.5 | |
| 2.29 | 8.88 | 1.23 | 4.77 | -13.32 | 117.10 | -11.01 | 151.15 | 0.3867 | -1073.5 | -913.5 | |
| 5.28 | 9.23 | 2.84 | 4.97 | -13.37 | 116.56 | -11.54 | 150.04 | 0.3915 | -1079.7 | -769.7 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -13.79 | 116.13 | -11.97 | 149.68 | 0.4008 | -874.0 | -728.2 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -12.61 | 116.10 | -12.01 | 148.02 | 0.3850 | -713.0 | -624.5 | |
| 0.00 | 1.06 | 0.00 | 0.58 | -15.70 | 115.67 | -12.44 | 151.09 | 0.4307 | -706.0 | -727.5 | |
| 0.00 | 2.73 | 0.00 | 1.48 | -14.15 | 115.73 | -12.37 | 149.32 | 0.4090 | -853.0 | -734.9 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -14.35 | 115.59 | -12.51 | 149.29 | 0.4128 | -813.0 | -689.3 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -15.33 | 115.18 | -12.92 | 149.70 | 0.4293 | -721.0 | -637.2 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -15.14 | 114.94 | -13.17 | 149.01 | 0.4287 | -691.0 | -390.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
