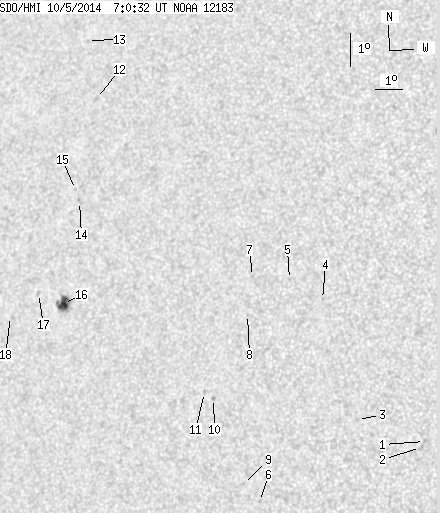

SDO HMI 2014-10-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.62 | 36.74 | 5.49 | 22.59 | 13.25 | 92.19 | -35.91 | 76.54 | 0.5881 | 53.8 | 61.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 0.87 | 9.88 | 102.65 | -25.46 | 80.65 | 0.4310 | -783.0 | -587.1 | |
| 0.00 | 2.46 | 0.00 | 1.35 | 9.70 | 102.53 | -25.58 | 81.11 | 0.4325 | -567.0 | -576.6 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 10.43 | 100.31 | -27.79 | 79.95 | 0.4676 | -673.0 | -504.8 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 13.97 | 98.67 | -29.43 | 73.18 | 0.5001 | -629.0 | -427.9 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 14.51 | 97.41 | -30.69 | 72.62 | 0.5198 | -859.0 | -646.7 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 7.79 | 97.13 | -30.98 | 85.69 | 0.5134 | -776.0 | -532.0 | |
| 0.00 | 1.14 | 0.00 | 0.67 | 14.53 | 96.07 | -32.04 | 73.08 | 0.5389 | -479.0 | -376.2 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 13.37 | 96.06 | -32.04 | 75.20 | 0.5359 | -633.0 | -478.6 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 8.30 | 96.52 | -31.59 | 84.72 | 0.5226 | -670.0 | -587.0 | |
| 0.00 | 1.23 | 0.00 | 0.73 | 10.78 | 95.18 | -32.93 | 80.18 | 0.5441 | -753.0 | -589.9 | |
| 0.00 | 1.32 | 0.00 | 0.78 | 10.94 | 94.83 | -33.28 | 79.94 | 0.5493 | -617.0 | -486.4 | |
| 0.00 | 1.93 | 0.00 | 1.25 | 19.55 | 88.93 | -39.17 | 67.25 | 0.6478 | 555.0 | 456.5 | |
| 0.00 | 0.35 | 0.00 | 0.23 | 21.29 | 88.02 | -40.09 | 64.98 | 0.6644 | 655.0 | 580.5 | |
| 0.00 | 2.73 | 0.00 | 1.75 | 16.38 | 89.07 | -39.03 | 72.06 | 0.6374 | 691.0 | 525.6 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 16.73 | 88.82 | -39.28 | 71.58 | 0.6414 | 460.0 | 370.1 | |
| 8.62 | 15.21 | 5.49 | 9.69 | 13.26 | 89.09 | -39.01 | 76.93 | 0.6312 | 937.9 | 635.7 | |
| 0.00 | 1.76 | 0.00 | 1.14 | 13.50 | 88.05 | -40.06 | 76.73 | 0.6452 | 683.0 | 488.2 | |
| 0.00 | 0.53 | 0.00 | 0.35 | 12.73 | 87.06 | -41.04 | 78.05 | 0.6570 | 455.0 | 480.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
