SDO HMI 2014-10-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.03 | 0.00 | 5.24 | 13.47 | 59.73 | -68.37 | 78.07 | 0.9253 | -17.4 | -127.1 | |
|
previous
or next observation for the same group /

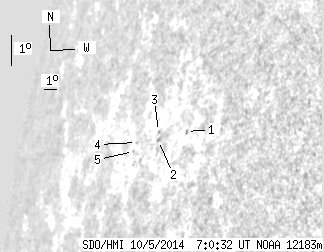

back to the solar disc SDO HMI 2014-10-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 1.60 | 13.82 | 61.43 | -66.67 | 77.74 | 0.9142 | -310.0 | -275.9 | |
| 0.00 | 1.49 | 0.00 | 1.96 | 13.33 | 59.41 | -68.69 | 78.22 | 0.9276 | -299.0 | -174.9 | |
| 0.00 | 0.70 | 0.00 | 0.93 | 13.59 | 59.25 | -68.85 | 77.93 | 0.9286 | -235.0 | -183.9 | |
| 0.00 | 0.26 | 0.00 | 0.37 | 13.08 | 57.60 | -70.50 | 78.43 | 0.9388 | 450.0 | 436.3 | |
| 0.00 | 0.26 | 0.00 | 0.38 | 12.80 | 57.51 | -70.59 | 78.73 | 0.9394 | 307.0 | 333.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
