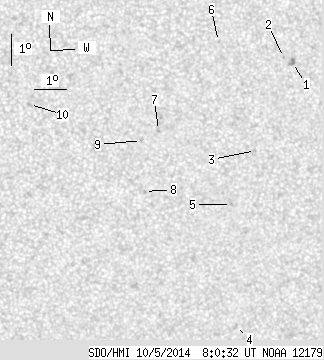

SDO HMI 2014-10-05 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.39 | 0.00 | 8.21 | -12.49 | 137.80 | 10.24 | 208.21 | 0.3714 | -159.2 | -43.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.13 | 0.00 | 2.19 | -10.21 | 140.34 | 12.79 | 217.40 | 0.3601 | 932.0 | 838.4 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -10.05 | 140.06 | 12.50 | 217.06 | 0.3552 | 763.0 | 588.0 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -12.96 | 139.30 | 11.75 | 210.95 | 0.3875 | 575.0 | 482.1 | |
| 0.00 | 1.85 | 0.00 | 1.03 | -18.66 | 138.99 | 11.44 | 203.94 | 0.4648 | -562.0 | -525.2 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -14.67 | 138.63 | 11.07 | 207.36 | 0.4061 | -941.0 | -736.5 | |
| 0.00 | 1.06 | 0.00 | 0.55 | -9.50 | 138.02 | 10.46 | 213.19 | 0.3286 | 745.0 | 575.9 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -12.26 | 136.25 | 8.69 | 204.74 | 0.3543 | -821.0 | -684.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -14.20 | 135.88 | 8.32 | 201.71 | 0.3808 | -707.0 | -637.6 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -12.57 | 135.73 | 8.17 | 203.08 | 0.3554 | -782.0 | -634.6 | |
| 0.00 | 1.76 | 0.00 | 0.92 | -11.38 | 132.25 | 4.69 | 194.65 | 0.3183 | -794.0 | -621.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
