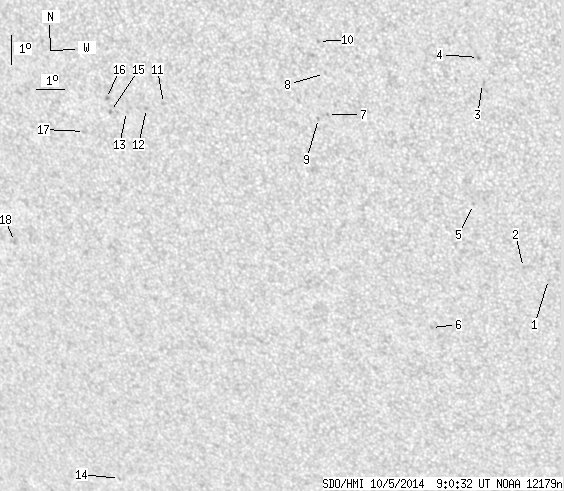

SDO HMI 2014-10-05 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.00 | 0.00 | 14.78 | -19.59 | 102.05 | -24.96 | 137.86 | 0.5896 | 105.9 | -62.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.72 | -22.58 | 112.75 | -14.26 | 154.78 | 0.5358 | 424.0 | 458.8 | |
| 0.00 | 1.23 | 0.00 | 0.72 | -22.20 | 111.96 | -15.05 | 153.22 | 0.5358 | 754.0 | 526.5 | |
| 0.00 | 0.62 | 0.00 | 0.34 | -16.10 | 111.20 | -15.81 | 145.45 | 0.4634 | 585.0 | 604.4 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -15.26 | 111.14 | -15.87 | 144.25 | 0.4534 | 821.0 | 718.8 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -20.11 | 110.52 | -16.49 | 148.99 | 0.5195 | 849.0 | 614.5 | |
| 0.00 | 1.32 | 0.00 | 0.80 | -24.38 | 108.53 | -18.48 | 150.39 | 0.5865 | 680.0 | 508.5 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -17.30 | 105.96 | -21.05 | 139.13 | 0.5262 | 881.0 | 675.2 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -15.96 | 106.01 | -21.00 | 137.41 | 0.5111 | 527.0 | 440.5 | |
| 0.00 | 1.41 | 0.00 | 0.82 | -17.44 | 105.64 | -21.37 | 138.89 | 0.5308 | 584.0 | 488.9 | |
| 0.00 | 0.97 | 0.00 | 0.55 | -14.93 | 105.93 | -21.08 | 135.85 | 0.5010 | 842.0 | 726.2 | |
| 0.00 | 1.58 | 0.00 | 0.96 | -17.21 | 100.33 | -26.68 | 132.32 | 0.5822 | -593.0 | -461.3 | |
| 0.00 | 1.58 | 0.00 | 0.97 | -17.40 | 99.70 | -27.31 | 131.92 | 0.5906 | -673.0 | -512.3 | |
| 0.00 | 0.62 | 0.00 | 0.38 | -17.54 | 98.97 | -28.04 | 131.36 | 0.5995 | -747.0 | -633.3 | |
| 0.00 | 0.97 | 0.00 | 0.71 | -30.50 | 95.34 | -31.67 | 142.38 | 0.7436 | -467.0 | -441.5 | |
| 0.00 | 1.67 | 0.00 | 1.04 | -17.57 | 98.39 | -28.62 | 130.83 | 0.6058 | -642.0 | -529.3 | |
| 0.00 | 1.49 | 0.00 | 0.93 | -17.15 | 98.32 | -28.69 | 130.21 | 0.6030 | -742.0 | -669.9 | |
| 0.00 | 1.76 | 0.00 | 1.11 | -18.29 | 97.32 | -29.69 | 130.74 | 0.6230 | -477.0 | -472.0 | |
| 0.00 | 3.60 | 0.00 | 2.46 | -22.18 | 93.80 | -33.21 | 132.38 | 0.6889 | -700.0 | -516.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
