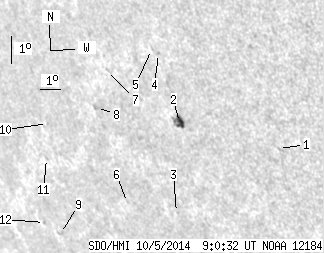

SDO HMI 2014-10-05 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.24 | 24.62 | 5.13 | 21.70 | -19.03 | 76.72 | -50.29 | 118.40 | 0.8266 | 305.6 | 125.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.74 | -18.74 | 83.81 | -43.20 | 121.51 | 0.7626 | 546.0 | 448.6 | |
| 6.24 | 11.43 | 5.13 | 9.41 | -18.25 | 79.51 | -47.50 | 118.72 | 0.8007 | 744.8 | 490.4 | |
| 0.00 | 0.35 | 0.00 | 0.31 | -21.35 | 78.10 | -48.91 | 121.55 | 0.8259 | 368.0 | 304.8 | |
| 0.00 | 1.05 | 0.00 | 0.86 | -16.03 | 79.28 | -47.73 | 116.04 | 0.7938 | 590.0 | 504.1 | |
| 0.00 | 0.62 | 0.00 | 0.50 | -15.93 | 78.99 | -48.02 | 115.79 | 0.7962 | 434.0 | 389.6 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -21.23 | 75.68 | -51.33 | 120.33 | 0.8453 | 224.0 | 137.0 | |
| 0.00 | 0.97 | 0.00 | 0.84 | -16.82 | 76.56 | -50.45 | 115.78 | 0.8218 | 591.0 | 433.3 | |
| 0.00 | 3.43 | 0.00 | 3.07 | -18.12 | 75.50 | -51.51 | 116.81 | 0.8356 | 249.0 | 253.5 | |
| 0.00 | 2.37 | 0.00 | 2.49 | -22.70 | 71.20 | -55.81 | 120.08 | 0.8839 | -523.0 | -416.5 | |
| 0.00 | 0.62 | 0.00 | 0.60 | -18.92 | 72.55 | -54.46 | 116.53 | 0.8624 | -557.0 | -510.9 | |
| 0.00 | 1.23 | 0.00 | 1.23 | -20.13 | 71.88 | -55.13 | 117.60 | 0.8713 | -495.0 | -428.1 | |
| 0.00 | 1.32 | 0.00 | 1.41 | -22.40 | 70.44 | -56.57 | 119.49 | 0.8883 | -319.0 | -258.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
