SDO HMI 2014-10-05 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.66 | 33.07 | 3.44 | 22.96 | 10.45 | 171.00 | 44.53 | 278.63 | 0.6978 | 28.1 | 20.5 | |
|
previous
or next observation for the same group /

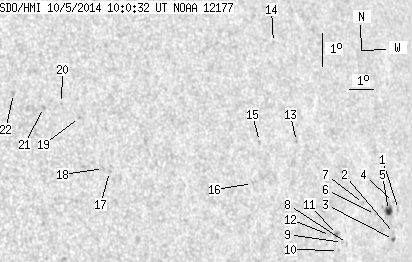

back to the solar disc SDO HMI 2014-10-05 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.59 | 9.55 | 175.25 | 48.79 | 277.02 | 0.7498 | -555.0 | -324.8 | |
| 0.00 | 1.41 | 0.00 | 1.04 | 8.85 | 174.94 | 48.47 | 276.08 | 0.7462 | -644.0 | -599.9 | |
| 0.70 | 1.85 | 0.52 | 1.37 | 8.68 | 174.86 | 48.40 | 275.84 | 0.7454 | -714.8 | -601.7 | |
| 0.00 | 0.79 | 0.00 | 0.59 | 9.78 | 175.06 | 48.60 | 277.33 | 0.7476 | -415.0 | -357.3 | |
| 3.96 | 8.26 | 2.92 | 6.11 | 9.56 | 174.79 | 48.33 | 277.03 | 0.7445 | -841.8 | -668.0 | |
| 0.00 | 0.62 | 0.00 | 0.45 | 9.49 | 174.18 | 47.72 | 276.94 | 0.7375 | 301.0 | 272.1 | |
| 0.00 | 1.41 | 0.00 | 1.02 | 9.86 | 173.71 | 47.25 | 277.45 | 0.7319 | -598.0 | -499.8 | |
| 0.00 | 0.62 | 0.00 | 0.44 | 8.73 | 172.80 | 46.33 | 275.88 | 0.7211 | 357.0 | 306.4 | |
| 0.00 | 0.97 | 0.00 | 0.69 | 8.78 | 172.58 | 46.12 | 275.94 | 0.7186 | 488.0 | 405.9 | |
| 0.00 | 0.88 | 0.00 | 0.62 | 8.55 | 172.37 | 45.91 | 275.62 | 0.7160 | 554.0 | 496.9 | |
| 0.00 | 2.81 | 0.00 | 1.99 | 9.03 | 172.41 | 45.94 | 276.30 | 0.7164 | 664.0 | 543.1 | |
| 0.00 | 0.79 | 0.00 | 0.56 | 9.03 | 172.10 | 45.64 | 276.29 | 0.7127 | 753.0 | 688.8 | |
| 0.00 | 0.88 | 0.00 | 0.61 | 11.95 | 171.17 | 44.71 | 280.46 | 0.7023 | -672.0 | -587.4 | |
| 0.00 | 0.88 | 0.00 | 0.61 | 14.98 | 170.90 | 44.44 | 284.82 | 0.7019 | -660.0 | -532.3 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 12.07 | 169.62 | 43.15 | 280.76 | 0.6831 | -559.0 | -465.6 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 10.84 | 169.09 | 42.63 | 278.98 | 0.6757 | 480.0 | 461.0 | |
| 0.00 | 1.58 | 0.00 | 0.98 | 11.60 | 163.51 | 37.04 | 280.69 | 0.6028 | 560.0 | 490.2 | |
| 0.00 | 1.41 | 0.00 | 0.87 | 11.71 | 163.29 | 36.83 | 280.90 | 0.6000 | 658.0 | 630.3 | |
| 0.00 | 1.23 | 0.00 | 0.76 | 13.30 | 162.64 | 36.17 | 283.67 | 0.5934 | 720.0 | 529.0 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 13.76 | 162.03 | 35.57 | 284.59 | 0.5860 | 591.0 | 471.7 | |
| 0.00 | 1.58 | 0.00 | 0.96 | 13.69 | 161.34 | 34.87 | 284.62 | 0.5763 | 749.0 | 638.0 | |
| 0.00 | 1.76 | 0.00 | 1.05 | 14.18 | 160.30 | 33.83 | 285.75 | 0.5630 | 717.0 | 599.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
