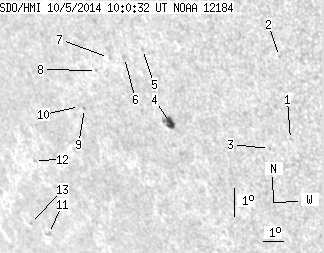

SDO HMI 2014-10-05 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.07 | 24.16 | 4.93 | 20.63 | -18.60 | 77.53 | -48.93 | 118.53 | 0.8127 | 338.9 | 148.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.85 | -18.35 | 84.85 | -41.61 | 121.95 | 0.7451 | 492.0 | 348.4 | |
| 0.00 | 1.05 | 0.00 | 0.76 | -15.64 | 85.13 | -41.33 | 118.80 | 0.7280 | 607.0 | 513.1 | |
| 0.00 | 0.97 | 0.00 | 0.73 | -18.73 | 83.84 | -42.62 | 121.81 | 0.7570 | 543.0 | 425.7 | |
| 6.07 | 9.23 | 4.93 | 7.51 | -18.23 | 79.58 | -46.88 | 118.99 | 0.7949 | 725.2 | 504.7 | |
| 0.00 | 1.14 | 0.00 | 0.92 | -15.91 | 79.06 | -47.40 | 116.04 | 0.7902 | 448.0 | 363.5 | |
| 0.00 | 2.20 | 0.00 | 1.81 | -16.25 | 78.11 | -48.35 | 116.02 | 0.8005 | 59.0 | 172.8 | |
| 0.00 | 0.70 | 0.00 | 0.59 | -16.32 | 77.32 | -49.14 | 115.75 | 0.8081 | 486.0 | 371.0 | |
| 0.00 | 0.79 | 0.00 | 0.68 | -16.80 | 76.57 | -49.89 | 115.99 | 0.8168 | 484.0 | 423.1 | |
| 0.00 | 1.32 | 0.00 | 1.17 | -18.14 | 75.46 | -51.00 | 117.04 | 0.8313 | 412.0 | 379.6 | |
| 0.00 | 1.23 | 0.00 | 1.10 | -18.09 | 75.23 | -51.24 | 116.89 | 0.8332 | 109.0 | 164.0 | |
| 0.00 | 2.29 | 0.00 | 2.36 | -22.68 | 71.25 | -55.21 | 120.29 | 0.8795 | -526.0 | -405.2 | |
| 0.00 | 1.05 | 0.00 | 1.04 | -20.18 | 71.87 | -54.59 | 117.85 | 0.8673 | -530.0 | -438.8 | |
| 0.00 | 1.05 | 0.00 | 1.11 | -22.43 | 70.36 | -56.10 | 119.68 | 0.8851 | -421.0 | -289.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
