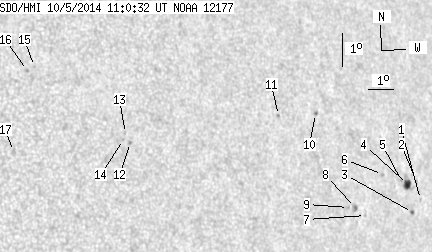

SDO HMI 2014-10-05 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.72 | 30.06 | 4.25 | 21.10 | 10.18 | 171.08 | 45.16 | 278.22 | 0.7046 | -36.6 | -46.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.60 | 9.01 | 175.34 | 49.43 | 276.31 | 0.7571 | -430.0 | -384.1 | |
| 0.00 | 1.14 | 0.00 | 0.86 | 9.56 | 175.26 | 49.35 | 277.04 | 0.7561 | -391.0 | -259.8 | |
| 0.53 | 1.76 | 0.39 | 1.32 | 8.65 | 174.90 | 48.99 | 275.83 | 0.7522 | -704.8 | -607.6 | |
| 4.66 | 8.97 | 3.48 | 6.70 | 9.50 | 174.83 | 48.91 | 276.96 | 0.7512 | -797.3 | -543.2 | |
| 0.00 | 1.32 | 0.00 | 0.98 | 9.65 | 174.58 | 48.66 | 277.15 | 0.7483 | -844.0 | -696.3 | |
| 0.00 | 1.41 | 0.00 | 1.03 | 9.90 | 173.76 | 47.84 | 277.49 | 0.7389 | -688.0 | -546.4 | |
| 0.00 | 1.14 | 0.00 | 0.82 | 8.74 | 172.78 | 46.86 | 275.90 | 0.7274 | 378.0 | 253.3 | |
| 0.53 | 2.81 | 0.38 | 2.01 | 9.01 | 172.38 | 46.47 | 276.28 | 0.7227 | 658.7 | 574.7 | |
| 0.00 | 0.88 | 0.00 | 0.62 | 9.04 | 172.08 | 46.16 | 276.31 | 0.7190 | 737.0 | 663.4 | |
| 0.00 | 1.58 | 0.00 | 1.11 | 11.96 | 171.19 | 45.28 | 280.44 | 0.7091 | -552.0 | -501.7 | |
| 0.00 | 0.79 | 0.00 | 0.54 | 12.02 | 169.61 | 43.69 | 280.64 | 0.6898 | -498.0 | -427.6 | |
| 0.00 | 1.14 | 0.00 | 0.71 | 11.65 | 163.54 | 37.63 | 280.69 | 0.6108 | 784.0 | 594.2 | |
| 0.00 | 0.44 | 0.00 | 0.27 | 11.93 | 163.39 | 37.48 | 281.18 | 0.6091 | 678.0 | 587.4 | |
| 0.00 | 0.70 | 0.00 | 0.44 | 11.75 | 163.29 | 37.37 | 280.90 | 0.6074 | 776.0 | 650.9 | |
| 0.00 | 0.88 | 0.00 | 0.53 | 14.17 | 160.31 | 34.39 | 285.58 | 0.5707 | 713.0 | 595.9 | |
| 0.00 | 1.23 | 0.00 | 0.74 | 14.06 | 160.02 | 34.11 | 285.48 | 0.5666 | 731.0 | 638.2 | |
| 0.00 | 3.08 | 0.00 | 1.82 | 11.66 | 159.14 | 33.22 | 281.41 | 0.5495 | 711.0 | 441.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
