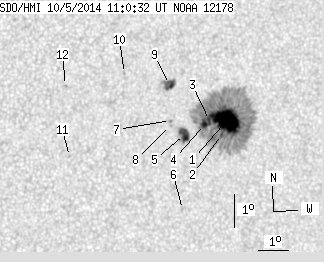

SDO HMI 2014-10-05 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 63.71 | 318.95 | 36.45 | 182.92 | -1.41 | 155.11 | 29.19 | 255.83 | 0.5049 | 1048.1 | 357.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.52 | 288.55 | 23.28 | 165.78 | -1.42 | 155.38 | 29.46 | 255.95 | 0.5089 | 1259.7 | 346.0 | |
| 1.05 | -1.00 | 0.61 | -1.00 | -1.84 | 155.21 | 29.30 | 255.08 | 0.5082 | 769.4 | 999999 | |
| 4.13 | -1.00 | 2.36 | -1.00 | -1.39 | 154.79 | 28.88 | 255.71 | 0.5003 | 1222.4 | 999999 | |
| 2.81 | -1.00 | 1.60 | -1.00 | -1.50 | 154.62 | 28.71 | 255.40 | 0.4982 | 1209.8 | 999999 | |
| 8.70 | 13.54 | 4.94 | 7.68 | -1.77 | 153.95 | 28.03 | 254.49 | 0.4894 | 986.2 | 695.7 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -4.04 | 153.94 | 28.02 | 250.11 | 0.5004 | 831.0 | 663.6 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -1.32 | 153.46 | 27.55 | 255.10 | 0.4804 | 527.0 | 594.5 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -1.47 | 153.47 | 27.55 | 254.80 | 0.4811 | 724.0 | 560.8 | |
| 6.50 | 10.72 | 3.66 | 6.03 | -0.23 | 153.42 | 27.51 | 257.29 | 0.4754 | 986.4 | 759.5 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 0.19 | 151.91 | 26.00 | 257.35 | 0.4511 | 758.0 | 609.4 | |
| 0.00 | 1.05 | 0.00 | 0.58 | -2.23 | 150.11 | 24.19 | 250.90 | 0.4351 | -746.0 | -559.7 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -0.08 | 149.96 | 24.04 | 255.60 | 0.4224 | -699.0 | -549.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
