SDO HMI 2014-10-05 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.92 | 0.00 | 12.81 | -19.97 | 102.02 | -23.35 | 140.69 | 0.5766 | 37.6 | 23.9 | |
|
previous
or next observation for the same group /

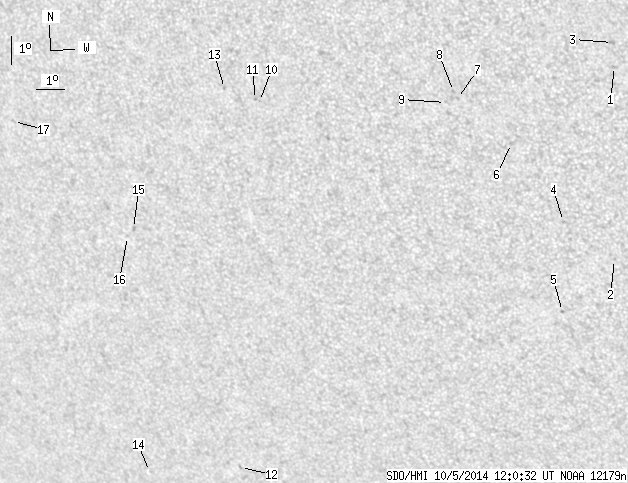

back to the solar disc SDO HMI 2014-10-05 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.02 | 0.00 | 1.12 | -16.02 | 111.25 | -14.12 | 148.30 | 0.4480 | 546.0 | 501.2 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -22.46 | 110.66 | -14.71 | 153.98 | 0.5370 | 689.0 | 498.6 | |
| 0.00 | 2.20 | 0.00 | 1.21 | -15.24 | 111.24 | -14.12 | 147.32 | 0.4378 | 718.0 | 644.0 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -21.22 | 109.09 | -16.28 | 150.44 | 0.5317 | 503.0 | 487.0 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -24.32 | 108.67 | -16.70 | 152.72 | 0.5736 | 600.0 | 539.9 | |
| 0.00 | 1.85 | 0.00 | 1.06 | -18.66 | 107.64 | -17.72 | 145.51 | 0.5114 | 665.0 | 430.9 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -17.24 | 106.01 | -19.36 | 141.37 | 0.5093 | 787.0 | 608.6 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -17.01 | 105.90 | -19.47 | 140.93 | 0.5077 | 592.0 | 511.7 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -17.38 | 105.59 | -19.78 | 140.97 | 0.5148 | 408.0 | 360.0 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -17.64 | 99.19 | -26.17 | 133.42 | 0.5809 | -728.0 | -596.6 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -17.58 | 99.06 | -26.31 | 133.20 | 0.5817 | -738.0 | -648.5 | |
| 0.00 | 1.14 | 0.00 | 0.83 | -30.58 | 95.34 | -30.03 | 143.85 | 0.7326 | -605.0 | -513.9 | |
| 0.00 | 1.32 | 0.00 | 0.81 | -17.28 | 98.02 | -27.35 | 131.71 | 0.5898 | -605.0 | -458.0 | |
| 0.00 | 0.44 | 0.00 | 0.34 | -30.98 | 91.44 | -33.93 | 141.04 | 0.7634 | -470.0 | -454.2 | |
| 0.00 | 1.67 | 0.00 | 1.12 | -22.19 | 93.67 | -31.70 | 133.66 | 0.6749 | -663.0 | -639.9 | |
| 0.00 | 1.23 | 0.00 | 0.83 | -22.49 | 93.36 | -32.01 | 133.73 | 0.6801 | -531.0 | -472.0 | |
| 0.00 | 1.76 | 0.00 | 1.19 | -18.86 | 89.88 | -35.49 | 126.62 | 0.6868 | -528.0 | -409.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
