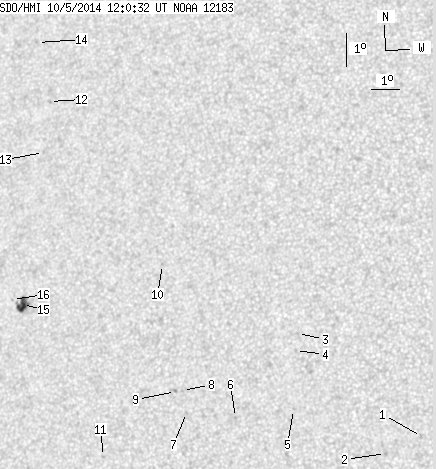

SDO HMI 2014-10-05 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.70 | 29.88 | 5.35 | 17.75 | 13.16 | 92.41 | -32.96 | 76.02 | 0.5473 | -33.8 | -45.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.80 | 10.02 | 103.54 | -21.83 | 79.25 | 0.3744 | -661.0 | -581.2 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 9.46 | 102.39 | -22.98 | 81.04 | 0.3915 | -768.0 | -595.6 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 12.93 | 99.12 | -26.25 | 74.01 | 0.4503 | -575.0 | -461.8 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 12.41 | 99.11 | -26.26 | 75.14 | 0.4489 | -680.0 | -444.1 | |
| 0.00 | 0.62 | 0.00 | 0.34 | 10.64 | 99.21 | -26.15 | 79.06 | 0.4431 | -659.0 | -501.7 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 10.30 | 97.26 | -28.11 | 80.25 | 0.4723 | -755.0 | -561.1 | |
| 0.00 | 1.23 | 0.00 | 0.70 | 10.36 | 95.54 | -29.83 | 80.45 | 0.4981 | -719.0 | -566.1 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 11.01 | 95.33 | -30.04 | 79.19 | 0.5022 | -593.0 | -471.7 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 10.97 | 95.09 | -30.28 | 79.33 | 0.5058 | -726.0 | -639.3 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 14.76 | 94.11 | -31.26 | 72.34 | 0.5287 | -647.0 | -557.1 | |
| 0.00 | 1.05 | 0.00 | 0.62 | 8.88 | 92.74 | -32.63 | 83.65 | 0.5382 | -675.0 | -532.0 | |
| 0.00 | 1.32 | 0.00 | 0.83 | 19.45 | 88.86 | -36.51 | 66.39 | 0.6145 | 699.0 | 592.8 | |
| 0.00 | 1.23 | 0.00 | 0.77 | 17.88 | 89.01 | -36.35 | 68.83 | 0.6072 | 572.0 | 433.6 | |
| 0.00 | 0.97 | 0.00 | 0.62 | 21.22 | 87.89 | -37.48 | 64.04 | 0.6332 | 454.0 | 462.2 | |
| 8.70 | 13.36 | 5.35 | 8.21 | 13.25 | 89.15 | -36.22 | 76.42 | 0.5939 | 864.9 | 640.6 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 13.37 | 88.74 | -36.63 | 76.29 | 0.5997 | 417.0 | 381.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
