groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12177 4.31 33.49 3.29 23.63 10.38 170.33 45.51 278.48 0.7096 133.2 129.4


previous   or   next   observation for the same group / back to the solar disc

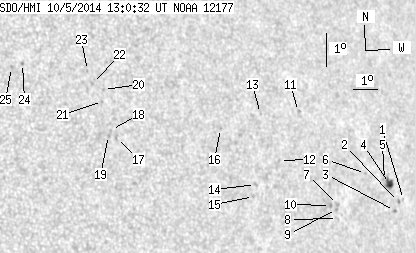

SDO HMI 2014-10-05 13:00:32 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 0.53 0.00 0.41 8.90 175.46 50.64 276.19 0.7706 -387.0 -335.0
2 0.00 1.49 0.00 1.15 8.86 175.21 50.39 276.14 0.7679 -478.0 -447.5
3 0.00 1.23 0.00 0.94 8.61 174.97 50.15 275.80 0.7653 -726.0 -680.3
4 4.31 7.29 3.29 5.58 9.43 174.89 50.07 276.88 0.7643 -779.7 -605.6
5 0.00 0.62 0.00 0.47 9.57 174.68 49.86 277.06 0.7619 -798.0 -679.7
6 0.00 0.97 0.00 0.72 9.82 173.84 49.02 277.39 0.7524 -581.0 -517.7
7 0.00 1.85 0.00 1.35 9.01 172.40 47.58 276.29 0.7359 652.0 524.9
8 0.00 1.32 0.00 0.96 8.59 172.33 47.51 275.72 0.7351 601.0 501.9
9 0.00 1.14 0.00 0.83 8.86 172.33 47.51 276.09 0.7350 679.0 553.3
10 0.00 1.58 0.00 1.15 9.00 172.08 47.26 276.28 0.7321 641.0 529.9
11 0.00 1.23 0.00 0.88 11.92 171.23 46.41 280.32 0.7227 -530.0 -474.6
12 0.00 0.70 0.00 0.49 10.53 170.11 45.29 278.42 0.7086 430.0 296.0
13 0.00 0.53 0.00 0.37 11.99 169.58 44.76 280.53 0.7029 -376.0 -364.7
14 0.00 1.41 0.00 0.96 9.89 168.96 44.14 277.54 0.6944 599.0 511.0
15 0.00 1.14 0.00 0.78 9.54 168.81 44.00 277.04 0.6925 526.0 410.9
16 0.00 0.62 0.00 0.41 11.68 167.81 42.99 280.20 0.6808 327.0 320.6
17 0.00 2.11 0.00 1.34 11.71 163.59 38.77 280.67 0.6262 768.0 601.1
18 0.00 0.79 0.00 0.50 11.97 163.43 38.61 281.09 0.6244 566.0 444.0
19 0.00 1.23 0.00 0.78 11.80 163.29 38.47 280.83 0.6223 627.0 557.9
20 0.00 1.23 0.00 0.78 13.19 163.34 38.52 283.06 0.6247 494.0 394.1
21 0.00 0.62 0.00 0.39 12.83 163.23 38.41 282.50 0.6228 681.0 555.6
22 0.00 1.14 0.00 0.72 13.40 162.94 38.13 283.46 0.6198 729.0 519.8
23 0.00 0.70 0.00 0.44 13.80 162.83 38.01 284.13 0.6189 621.0 539.2
24 0.00 1.05 0.00 0.64 14.18 160.38 35.56 285.30 0.5868 705.0 565.3
25 0.00 0.97 0.00 0.59 14.08 159.95 35.13 285.25 0.5807 430.0 417.6


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
