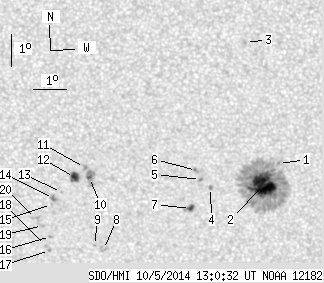

SDO HMI 2014-10-05 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.00 | 236.26 | 24.86 | 125.02 | -13.65 | 121.29 | -3.53 | 170.31 | 0.3524 | 444.2 | 184.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.76 | 0.00 | 0.92 | -12.91 | 122.83 | -1.99 | 174.17 | 0.3353 | 907.0 | 730.2 | |
| 38.13 | 184.16 | 20.13 | 97.25 | -13.58 | 122.36 | -2.46 | 173.06 | 0.3471 | 1217.1 | 345.9 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -9.11 | 121.85 | -2.96 | 169.24 | 0.2748 | 813.0 | 615.3 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -13.69 | 120.72 | -4.10 | 168.60 | 0.3531 | 847.0 | 718.7 | |
| 0.00 | 1.85 | 0.00 | 0.98 | -13.44 | 120.41 | -4.40 | 167.62 | 0.3501 | 969.0 | 828.0 | |
| 0.00 | 2.11 | 0.00 | 1.11 | -13.15 | 120.30 | -4.52 | 167.12 | 0.3459 | 998.0 | 839.4 | |
| 2.28 | 4.31 | 1.22 | 2.29 | -14.37 | 120.08 | -4.73 | 167.33 | 0.3661 | 909.9 | 691.5 | |
| 0.00 | 3.60 | 0.00 | 1.94 | -15.72 | 117.33 | -7.49 | 161.59 | 0.3991 | -558.0 | -598.6 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -15.59 | 117.05 | -7.77 | 160.85 | 0.3986 | -675.0 | -553.0 | |
| 1.32 | 11.16 | 0.70 | 5.94 | -13.41 | 116.97 | -7.84 | 158.63 | 0.3660 | -1044.9 | -789.5 | |
| 0.00 | 2.37 | 0.00 | 1.26 | -13.10 | 116.83 | -7.99 | 157.94 | 0.3620 | -1014.0 | -867.6 | |
| 5.27 | 7.47 | 2.81 | 3.98 | -13.42 | 116.51 | -8.31 | 157.49 | 0.3689 | -1028.2 | -791.0 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -13.90 | 116.08 | -8.74 | 156.99 | 0.3788 | -882.0 | -622.8 | |
| 0.00 | 3.25 | 0.00 | 1.74 | -14.10 | 115.82 | -8.99 | 156.60 | 0.3833 | -910.0 | -812.8 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -14.29 | 115.75 | -9.06 | 156.64 | 0.3867 | -684.0 | -516.6 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -15.33 | 115.68 | -9.14 | 157.52 | 0.4024 | -679.0 | -706.1 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -15.78 | 115.62 | -9.19 | 157.84 | 0.4094 | -830.0 | -626.3 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -15.62 | 115.51 | -9.31 | 157.43 | 0.4077 | -744.0 | -679.9 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -14.98 | 115.44 | -9.38 | 156.64 | 0.3987 | -714.0 | -611.5 | |
| 0.00 | 2.90 | 0.00 | 1.56 | -14.75 | 115.23 | -9.59 | 155.94 | 0.3968 | -682.0 | -579.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
