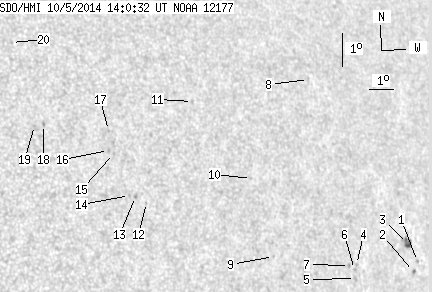

SDO HMI 2014-10-05 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.13 | 28.82 | 3.19 | 20.31 | 10.91 | 169.64 | 45.37 | 279.35 | 0.7079 | 212.0 | 182.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.75 | 8.83 | 175.27 | 51.00 | 276.12 | 0.7746 | -504.0 | -459.1 | |
| 0.35 | 1.32 | 0.27 | 1.02 | 8.55 | 175.02 | 50.75 | 275.75 | 0.7720 | -662.5 | -557.6 | |
| 3.78 | 7.64 | 2.92 | 5.91 | 9.41 | 174.90 | 50.63 | 276.86 | 0.7705 | -798.4 | -616.0 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 8.99 | 172.43 | 48.16 | 276.27 | 0.7426 | 594.0 | 492.0 | |
| 0.00 | 2.02 | 0.00 | 1.49 | 8.58 | 172.31 | 48.04 | 275.71 | 0.7413 | 632.0 | 515.5 | |
| 0.00 | 0.97 | 0.00 | 0.71 | 8.85 | 172.31 | 48.04 | 276.07 | 0.7413 | 666.0 | 568.1 | |
| 0.00 | 1.32 | 0.00 | 0.96 | 8.99 | 172.11 | 47.84 | 276.26 | 0.7389 | 650.0 | 503.5 | |
| 0.00 | 0.97 | 0.00 | 0.70 | 14.68 | 171.56 | 47.29 | 284.04 | 0.7350 | -487.0 | -438.4 | |
| 0.00 | 0.44 | 0.00 | 0.30 | 9.52 | 168.85 | 44.58 | 277.00 | 0.6998 | 433.0 | 486.2 | |
| 0.00 | 0.53 | 0.00 | 0.36 | 11.92 | 168.36 | 44.09 | 280.48 | 0.6946 | -593.0 | -549.0 | |
| 0.00 | 1.23 | 0.00 | 0.82 | 14.41 | 166.41 | 42.14 | 284.35 | 0.6731 | 486.0 | 384.1 | |
| 0.00 | 0.97 | 0.00 | 0.62 | 11.53 | 163.95 | 39.68 | 280.27 | 0.6381 | 588.0 | 459.5 | |
| 0.00 | 1.84 | 0.00 | 1.18 | 11.74 | 163.55 | 39.28 | 280.65 | 0.6330 | 804.0 | 620.4 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 11.78 | 163.32 | 39.05 | 280.75 | 0.6300 | 726.0 | 628.4 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 13.09 | 162.92 | 38.65 | 282.87 | 0.6263 | 546.0 | 530.5 | |
| 0.00 | 1.49 | 0.00 | 0.94 | 13.19 | 162.74 | 38.47 | 283.07 | 0.6241 | 744.0 | 671.5 | |
| 0.00 | 0.88 | 0.00 | 0.56 | 13.79 | 162.86 | 38.59 | 284.00 | 0.6266 | 592.0 | 540.2 | |
| 0.00 | 1.58 | 0.00 | 0.97 | 14.14 | 160.39 | 36.12 | 285.10 | 0.5943 | 695.0 | 597.1 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 14.13 | 160.05 | 35.78 | 285.17 | 0.5896 | 767.0 | 559.1 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 16.69 | 159.67 | 35.41 | 289.56 | 0.5912 | 538.0 | 452.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
