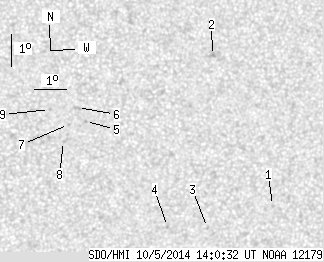

SDO HMI 2014-10-05 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.34 | 0.00 | 6.14 | -12.60 | 138.38 | 14.11 | 216.14 | 0.4042 | -259.7 | -101.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.69 | -15.07 | 142.59 | 18.32 | 219.98 | 0.4742 | 589.0 | 447.8 | |
| 0.00 | 2.55 | 0.00 | 1.37 | -10.23 | 140.32 | 16.05 | 223.85 | 0.3945 | 825.0 | 640.4 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -15.70 | 140.52 | 16.25 | 215.82 | 0.4623 | 580.0 | 486.0 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -15.63 | 139.22 | 14.95 | 213.69 | 0.4499 | -795.0 | -641.0 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -12.19 | 136.41 | 12.14 | 212.91 | 0.3801 | -827.0 | -751.0 | |
| 0.00 | 2.46 | 0.00 | 1.31 | -11.74 | 136.14 | 11.87 | 212.98 | 0.3717 | -732.0 | -586.0 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -12.27 | 135.88 | 11.62 | 211.64 | 0.3767 | -678.0 | -556.9 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -12.81 | 135.75 | 11.48 | 210.60 | 0.3830 | -642.0 | -485.5 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -11.78 | 135.27 | 11.00 | 210.96 | 0.3648 | -657.0 | -583.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
