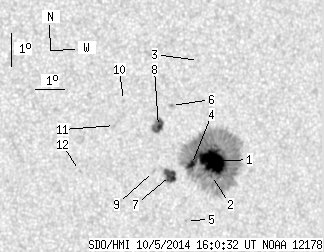

SDO HMI 2014-10-05 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.91 | 307.47 | 36.43 | 181.61 | -1.44 | 155.17 | 32.00 | 257.16 | 0.5455 | 1056.1 | 364.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.26 | 274.64 | 23.23 | 162.56 | -1.47 | 155.42 | 32.26 | 257.22 | 0.5492 | 1276.5 | 354.1 | |
| 0.26 | -1.00 | 0.16 | -1.00 | -1.89 | 155.40 | 32.23 | 256.46 | 0.5504 | 719.3 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 1.61 | 154.93 | 31.77 | 262.62 | 0.5327 | 561.0 | 381.0 | |
| 4.30 | -1.00 | 2.53 | -1.00 | -1.51 | 154.68 | 31.51 | 256.80 | 0.5388 | 1184.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.57 | -3.20 | 154.55 | 31.38 | 253.72 | 0.5437 | 699.0 | 499.0 | |
| 0.00 | 1.05 | 0.00 | 0.61 | 0.31 | 153.97 | 30.80 | 259.85 | 0.5223 | 540.0 | 384.1 | |
| 10.10 | 13.17 | 5.89 | 7.68 | -1.80 | 153.95 | 30.78 | 255.92 | 0.5294 | 959.5 | 690.5 | |
| 7.99 | 12.38 | 4.62 | 7.16 | -0.30 | 153.52 | 30.35 | 258.52 | 0.5176 | 958.4 | 720.2 | |
| 0.00 | 1.84 | 0.00 | 1.07 | -1.65 | 153.35 | 30.19 | 255.91 | 0.5203 | 717.0 | 548.9 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 0.56 | 152.31 | 29.14 | 259.64 | 0.4970 | 690.0 | 549.8 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -0.18 | 152.00 | 28.83 | 258.05 | 0.4949 | 744.0 | 620.1 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -1.47 | 150.81 | 27.65 | 254.85 | 0.4825 | -592.0 | -537.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
