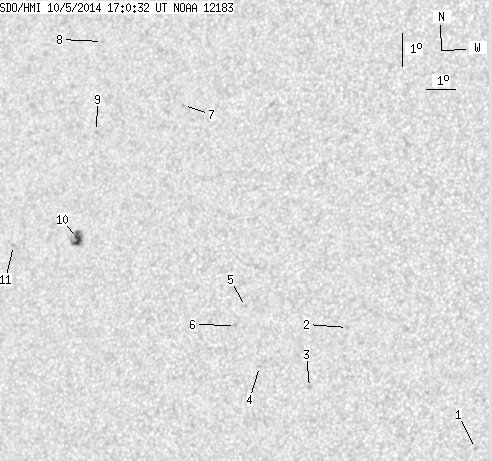

SDO HMI 2014-10-05 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.55 | 29.68 | 4.49 | 17.26 | 12.83 | 91.57 | -31.05 | 76.20 | 0.5197 | 205.7 | 193.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 0.83 | 7.65 | 103.33 | -19.29 | 85.36 | 0.3299 | -845.0 | -578.7 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 11.11 | 98.92 | -23.69 | 77.15 | 0.4062 | -557.0 | -465.7 | |
| 0.00 | 2.28 | 0.00 | 1.25 | 9.26 | 97.80 | -24.81 | 81.95 | 0.4201 | -695.0 | -519.5 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 9.80 | 96.07 | -26.55 | 81.02 | 0.4477 | -757.0 | -607.1 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 11.58 | 95.42 | -27.19 | 77.29 | 0.4608 | -711.0 | -569.8 | |
| 0.00 | 1.32 | 0.00 | 0.74 | 10.99 | 95.14 | -27.48 | 78.63 | 0.4639 | -601.0 | -548.8 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 17.53 | 92.39 | -30.23 | 66.75 | 0.5246 | 632.0 | 534.8 | |
| 0.00 | 0.88 | 0.00 | 0.53 | 19.31 | 89.00 | -33.62 | 65.35 | 0.5771 | 677.0 | 510.4 | |
| 0.00 | 1.41 | 0.00 | 0.84 | 16.56 | 89.36 | -33.26 | 69.87 | 0.5620 | 703.0 | 621.3 | |
| 7.55 | 15.54 | 4.49 | 9.24 | 13.30 | 89.22 | -33.40 | 75.68 | 0.5550 | 978.7 | 693.6 | |
| 0.00 | 2.02 | 0.00 | 1.23 | 12.94 | 86.88 | -35.74 | 76.84 | 0.5868 | 740.0 | 505.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
