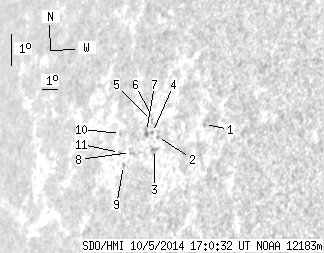

SDO HMI 2014-10-05 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.01 | 0.00 | 19.58 | 13.25 | 59.00 | -63.62 | 78.41 | 0.8919 | 94.8 | 131.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 1.28 | 14.08 | 62.51 | -60.10 | 77.46 | 0.8635 | -387.0 | -385.1 | |
| 0.00 | 1.23 | 0.00 | 1.30 | 13.44 | 59.74 | -62.88 | 78.20 | 0.8863 | -421.0 | -298.7 | |
| 0.00 | 3.25 | 0.00 | 3.45 | 13.04 | 59.72 | -62.90 | 78.65 | 0.8865 | -244.0 | -188.7 | |
| 0.00 | 1.14 | 0.00 | 1.23 | 13.53 | 59.35 | -63.26 | 78.10 | 0.8893 | -198.0 | -128.3 | |
| 0.00 | 1.76 | 0.00 | 1.90 | 13.87 | 59.11 | -63.50 | 77.71 | 0.8911 | -117.0 | -96.4 | |
| 0.00 | 0.26 | 0.00 | 0.29 | 14.02 | 59.04 | -63.57 | 77.55 | 0.8917 | -176.0 | -180.0 | |
| 0.00 | 3.25 | 0.00 | 3.54 | 13.52 | 58.94 | -63.68 | 78.11 | 0.8925 | 373.0 | 353.1 | |
| 0.00 | 2.02 | 0.00 | 2.26 | 12.79 | 58.15 | -64.47 | 78.91 | 0.8985 | 645.0 | 542.7 | |
| 0.00 | 1.49 | 0.00 | 1.69 | 12.36 | 57.84 | -64.77 | 79.38 | 0.9009 | 606.0 | 520.4 | |
| 0.00 | 0.88 | 0.00 | 1.02 | 13.28 | 57.17 | -65.44 | 78.35 | 0.9056 | 411.0 | 392.9 | |
| 0.00 | 1.41 | 0.00 | 1.62 | 12.72 | 57.38 | -65.23 | 78.98 | 0.9042 | 551.0 | 457.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
