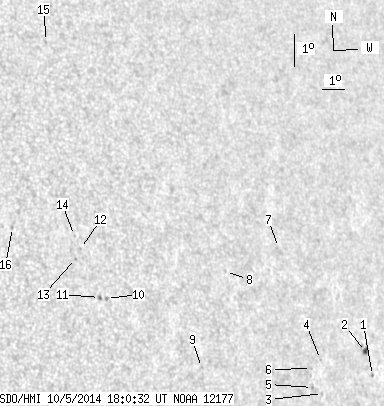

SDO HMI 2014-10-05 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.02 | 17.57 | 1.65 | 12.89 | 10.77 | 169.71 | 47.64 | 278.98 | 0.7347 | 223.2 | 105.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.72 | 8.52 | 175.27 | 53.21 | 275.78 | 0.7983 | -691.0 | -637.8 | |
| 2.02 | 5.09 | 1.65 | 4.15 | 9.26 | 175.07 | 53.01 | 276.71 | 0.7960 | -655.4 | -535.0 | |
| 0.00 | 0.70 | 0.00 | 0.54 | 8.20 | 172.74 | 50.68 | 275.28 | 0.7712 | 325.0 | 259.9 | |
| 0.00 | 0.35 | 0.00 | 0.27 | 9.22 | 172.84 | 50.77 | 276.61 | 0.7720 | 397.0 | 425.2 | |
| 0.00 | 1.14 | 0.00 | 0.88 | 8.42 | 172.30 | 50.24 | 275.55 | 0.7663 | 601.0 | 488.7 | |
| 0.00 | 0.26 | 0.00 | 0.20 | 8.99 | 172.36 | 50.29 | 276.30 | 0.7668 | 562.0 | 569.3 | |
| 0.00 | 0.44 | 0.00 | 0.33 | 12.72 | 171.65 | 49.58 | 281.22 | 0.7594 | -484.0 | -448.6 | |
| 0.00 | 0.97 | 0.00 | 0.70 | 12.20 | 169.06 | 47.00 | 280.67 | 0.7297 | -459.0 | -424.4 | |
| 0.00 | 0.88 | 0.00 | 0.62 | 9.43 | 167.44 | 45.37 | 276.86 | 0.7095 | 103.0 | 198.0 | |
| 0.00 | 1.41 | 0.00 | 0.93 | 11.79 | 163.85 | 41.79 | 280.48 | 0.6656 | 686.0 | 552.0 | |
| 0.00 | 1.67 | 0.00 | 1.10 | 11.85 | 163.57 | 41.51 | 280.58 | 0.6621 | 626.0 | 568.6 | |
| 0.00 | 0.88 | 0.00 | 0.58 | 13.37 | 163.09 | 41.03 | 282.94 | 0.6576 | 604.0 | 471.6 | |
| 0.00 | 0.88 | 0.00 | 0.57 | 13.08 | 162.83 | 40.77 | 282.55 | 0.6539 | 730.0 | 676.7 | |
| 0.00 | 0.35 | 0.00 | 0.23 | 13.78 | 162.94 | 40.87 | 283.59 | 0.6561 | 541.0 | 590.0 | |
| 0.00 | 0.53 | 0.00 | 0.35 | 19.71 | 163.34 | 41.28 | 292.34 | 0.6738 | 553.0 | 455.2 | |
| 0.00 | 1.14 | 0.00 | 0.72 | 14.19 | 160.53 | 38.46 | 284.67 | 0.6256 | 703.0 | 565.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
