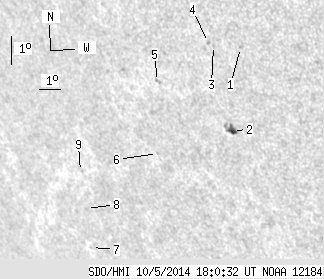

SDO HMI 2014-10-05 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.95 | 16.60 | 2.96 | 12.71 | -17.94 | 78.34 | -43.73 | 120.28 | 0.7627 | 398.9 | 410.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.82 | -15.44 | 80.73 | -41.33 | 118.55 | 0.7270 | 660.0 | 511.2 | |
| 3.95 | 9.13 | 2.96 | 6.85 | -18.22 | 79.63 | -42.43 | 121.31 | 0.7525 | 796.9 | 560.9 | |
| 0.00 | 1.14 | 0.00 | 0.84 | -15.47 | 79.59 | -42.47 | 117.95 | 0.7390 | 694.0 | 588.9 | |
| 0.00 | 1.41 | 0.00 | 1.03 | -15.39 | 79.40 | -42.66 | 117.75 | 0.7406 | 587.0 | 504.4 | |
| 0.00 | 1.32 | 0.00 | 1.03 | -16.86 | 76.77 | -45.30 | 118.16 | 0.7739 | 582.0 | 484.9 | |
| 0.00 | 0.88 | 0.00 | 0.71 | -19.28 | 75.95 | -46.12 | 120.57 | 0.7925 | 504.0 | 398.6 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -22.84 | 71.16 | -50.90 | 122.25 | 0.8478 | -355.0 | -432.3 | |
| 0.00 | 0.97 | 0.00 | 0.88 | -21.49 | 71.58 | -50.48 | 120.97 | 0.8393 | -140.0 | -143.0 | |
| 0.00 | 0.35 | 0.00 | 0.31 | -20.23 | 71.86 | -50.20 | 119.71 | 0.8322 | -519.0 | -518.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
