SDO HMI 2014-10-05 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.28 | 0.00 | 14.69 | -17.77 | 102.28 | -19.23 | 142.83 | 0.5168 | 8.5 | 50.8 | |
|
previous
or next observation for the same group /

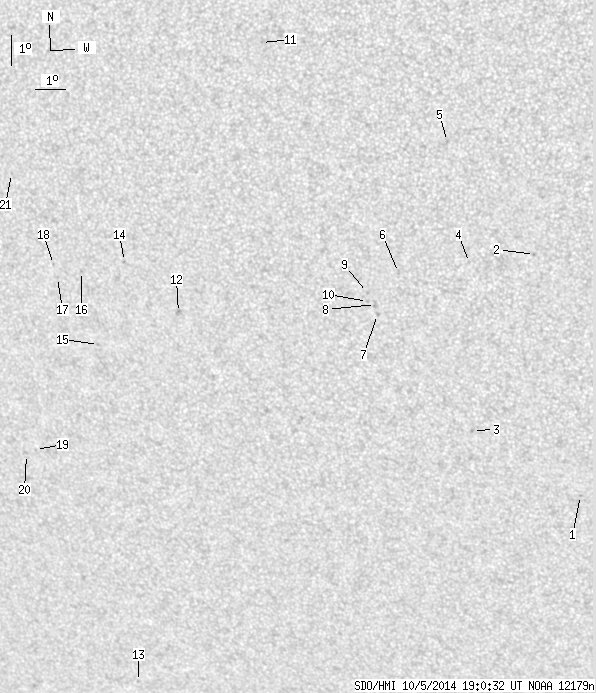

back to the solar disc SDO HMI 2014-10-05 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.46 | -23.31 | 112.23 | -9.28 | 163.36 | 0.5194 | 609.0 | 559.6 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -15.30 | 111.24 | -10.27 | 155.03 | 0.4093 | 728.0 | 528.7 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -21.17 | 108.84 | -12.67 | 156.09 | 0.5069 | 692.0 | 579.1 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -15.60 | 109.16 | -12.35 | 151.13 | 0.4285 | 643.0 | 532.1 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -11.75 | 108.68 | -12.83 | 144.98 | 0.3805 | 811.0 | 611.3 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -15.99 | 106.86 | -14.65 | 147.30 | 0.4520 | 734.0 | 656.1 | |
| 0.00 | 1.76 | 0.00 | 0.99 | -17.38 | 106.06 | -15.45 | 147.62 | 0.4766 | 793.0 | 651.5 | |
| 0.00 | 3.25 | 0.00 | 1.82 | -17.06 | 106.03 | -15.48 | 147.17 | 0.4727 | 770.0 | 650.9 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -16.67 | 105.80 | -15.71 | 146.32 | 0.4697 | 771.0 | 686.3 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -16.97 | 105.77 | -15.74 | 146.64 | 0.4737 | 809.0 | 648.4 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -8.83 | 102.94 | -18.57 | 129.39 | 0.4089 | -764.0 | -612.1 | |
| 0.00 | 2.72 | 0.00 | 1.60 | -17.56 | 99.43 | -22.08 | 138.12 | 0.5389 | -899.0 | -732.8 | |
| 0.00 | 1.23 | 0.00 | 0.86 | -30.60 | 95.33 | -26.18 | 147.37 | 0.7066 | -648.0 | -476.3 | |
| 0.00 | 1.32 | 0.00 | 0.77 | -15.98 | 97.80 | -23.71 | 133.97 | 0.5393 | -762.0 | -600.4 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -18.75 | 96.50 | -25.01 | 136.13 | 0.5798 | -700.0 | -560.1 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -16.38 | 96.27 | -25.24 | 132.75 | 0.5593 | -651.0 | -454.2 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -16.61 | 95.40 | -26.11 | 132.12 | 0.5707 | -519.0 | -347.3 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -16.20 | 95.33 | -26.19 | 131.47 | 0.5677 | -594.0 | -470.9 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -22.43 | 93.55 | -27.96 | 137.41 | 0.6427 | -421.0 | -285.7 | |
| 0.00 | 0.44 | 0.00 | 0.28 | -22.63 | 93.17 | -28.34 | 137.26 | 0.6478 | -512.0 | -546.6 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -13.33 | 94.25 | -27.26 | 126.26 | 0.5548 | -712.0 | -565.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
