SDO HMI 2014-10-05 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.76 | 22.73 | 3.97 | 13.33 | 13.86 | 89.84 | -31.67 | 74.43 | 0.5312 | 322.2 | 369.8 | |
|
previous
or next observation for the same group /

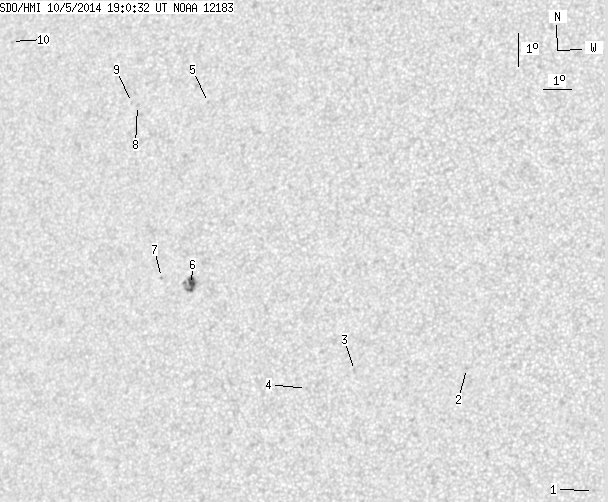

back to the solar disc SDO HMI 2014-10-05 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.32 | 7.75 | 103.34 | -18.17 | 84.89 | 0.3116 | -747.0 | -557.1 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 11.26 | 99.01 | -22.51 | 76.29 | 0.3881 | -752.0 | -638.5 | |
| 0.00 | 1.49 | 0.00 | 0.83 | 11.03 | 95.27 | -26.24 | 78.21 | 0.4452 | -626.0 | -508.3 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 10.41 | 93.68 | -27.83 | 79.97 | 0.4682 | -827.0 | -592.9 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 18.85 | 88.87 | -32.64 | 65.66 | 0.5624 | 720.0 | 592.1 | |
| 6.76 | 14.14 | 3.97 | 8.31 | 13.31 | 89.26 | -32.26 | 75.36 | 0.5389 | 1047.8 | 734.3 | |
| 0.00 | 1.05 | 0.00 | 0.63 | 13.45 | 88.13 | -33.38 | 75.40 | 0.5551 | 664.0 | 475.0 | |
| 0.00 | 1.41 | 0.00 | 0.86 | 18.60 | 86.22 | -35.29 | 67.27 | 0.5959 | 493.0 | 432.4 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 18.67 | 85.97 | -35.55 | 67.24 | 0.5995 | 553.0 | 434.6 | |
| 0.00 | 0.61 | 0.00 | 0.41 | 20.21 | 80.67 | -40.84 | 66.80 | 0.6700 | 541.0 | 504.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
