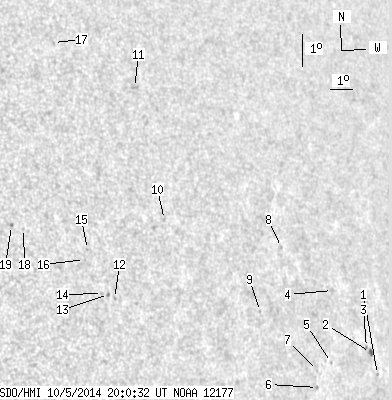

SDO HMI 2014-10-05 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.58 | 22.82 | 1.32 | 16.86 | 12.23 | 168.89 | 47.94 | 280.97 | 0.7393 | 249.1 | 174.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.59 | 8.53 | 175.36 | 54.40 | 275.85 | 0.8105 | -625.0 | -589.8 | |
| 1.58 | 2.81 | 1.32 | 2.35 | 9.22 | 175.14 | 54.18 | 276.69 | 0.8081 | -595.3 | -476.5 | |
| 0.00 | 1.14 | 0.00 | 0.95 | 9.39 | 174.97 | 54.01 | 276.89 | 0.8063 | -610.0 | -577.6 | |
| 0.00 | 1.84 | 0.00 | 1.49 | 11.23 | 173.68 | 52.72 | 279.20 | 0.7929 | -103.0 | -151.4 | |
| 0.00 | 1.14 | 0.00 | 0.91 | 9.10 | 173.13 | 52.17 | 276.48 | 0.7872 | 328.0 | 248.1 | |
| 0.00 | 0.70 | 0.00 | 0.55 | 8.42 | 172.30 | 51.34 | 275.59 | 0.7785 | 570.0 | 516.1 | |
| 0.00 | 0.61 | 0.00 | 0.48 | 8.92 | 172.40 | 51.44 | 276.24 | 0.7794 | 608.0 | 550.0 | |
| 0.00 | 0.97 | 0.00 | 0.75 | 12.73 | 171.55 | 50.59 | 281.18 | 0.7705 | -364.0 | -311.4 | |
| 0.00 | 0.97 | 0.00 | 0.73 | 10.91 | 170.09 | 49.13 | 278.83 | 0.7538 | 426.0 | 347.3 | |
| 0.00 | 1.05 | 0.00 | 0.74 | 14.00 | 166.47 | 45.52 | 283.30 | 0.7136 | 515.0 | 469.7 | |
| 0.00 | 2.28 | 0.00 | 1.62 | 18.07 | 166.33 | 45.38 | 288.98 | 0.7179 | 166.0 | 139.4 | |
| 0.00 | 1.23 | 0.00 | 0.83 | 11.81 | 163.83 | 42.87 | 280.40 | 0.6794 | 451.0 | 489.1 | |
| 0.00 | 1.23 | 0.00 | 0.82 | 11.95 | 163.60 | 42.64 | 280.63 | 0.6766 | 697.0 | 584.0 | |
| 0.00 | 1.14 | 0.00 | 0.76 | 12.00 | 163.36 | 42.40 | 280.72 | 0.6736 | 699.0 | 581.2 | |
| 0.00 | 0.88 | 0.00 | 0.58 | 13.36 | 163.02 | 42.06 | 282.78 | 0.6707 | 632.0 | 474.2 | |
| 0.00 | 0.61 | 0.00 | 0.41 | 13.07 | 162.83 | 41.87 | 282.38 | 0.6680 | 429.0 | 468.9 | |
| 0.00 | 1.32 | 0.00 | 0.89 | 19.70 | 163.30 | 42.34 | 292.01 | 0.6863 | 493.0 | 403.3 | |
| 0.00 | 0.88 | 0.00 | 0.57 | 14.18 | 160.57 | 39.62 | 284.42 | 0.6406 | 612.0 | 510.0 | |
| 0.00 | 1.32 | 0.00 | 0.84 | 14.30 | 160.12 | 39.16 | 284.70 | 0.6349 | 675.0 | 604.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
