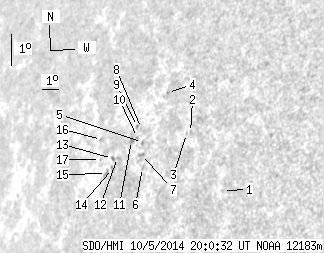

SDO HMI 2014-10-05 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.94 | 0.00 | 22.64 | 13.15 | 59.02 | -61.93 | 78.53 | 0.8785 | -22.1 | 126.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.23 | 12.47 | 64.93 | -56.03 | 79.30 | 0.8263 | -453.0 | -367.7 | |
| 0.00 | 0.97 | 0.00 | 0.90 | 14.03 | 62.53 | -58.43 | 77.49 | 0.8488 | -489.0 | -464.8 | |
| 0.00 | 0.26 | 0.00 | 0.25 | 13.97 | 62.31 | -58.65 | 77.56 | 0.8508 | -345.0 | -337.7 | |
| 0.00 | 0.79 | 0.00 | 0.78 | 15.08 | 60.66 | -60.30 | 76.30 | 0.8653 | -600.0 | -539.6 | |
| 0.00 | 1.05 | 0.00 | 1.06 | 13.46 | 59.80 | -61.16 | 78.18 | 0.8724 | -375.0 | -296.2 | |
| 0.00 | 1.58 | 0.00 | 1.57 | 12.72 | 60.10 | -60.85 | 79.03 | 0.8698 | -394.0 | -288.7 | |
| 0.00 | 2.02 | 0.00 | 2.03 | 13.10 | 59.89 | -61.07 | 78.60 | 0.8716 | -495.0 | -356.9 | |
| 0.00 | 0.26 | 0.00 | 0.27 | 13.86 | 59.55 | -61.41 | 77.72 | 0.8744 | -405.0 | -429.7 | |
| 0.00 | 1.14 | 0.00 | 1.17 | 13.90 | 59.27 | -61.68 | 77.68 | 0.8767 | -252.0 | -186.2 | |
| 0.00 | 1.05 | 0.00 | 1.07 | 13.57 | 59.42 | -61.54 | 78.05 | 0.8755 | -220.0 | -122.5 | |
| 0.00 | 2.90 | 0.00 | 2.98 | 13.45 | 59.08 | -61.88 | 78.19 | 0.8782 | 423.0 | 324.9 | |
| 0.00 | 1.23 | 0.00 | 1.29 | 12.86 | 58.41 | -62.55 | 78.86 | 0.8837 | 684.0 | 583.6 | |
| 0.00 | 1.67 | 0.00 | 1.77 | 12.80 | 58.10 | -62.86 | 78.92 | 0.8862 | 601.0 | 547.8 | |
| 0.00 | 1.76 | 0.00 | 1.86 | 12.51 | 58.23 | -62.73 | 79.26 | 0.8852 | 589.0 | 504.1 | |
| 0.00 | 2.72 | 0.00 | 2.91 | 12.32 | 57.90 | -63.06 | 79.46 | 0.8878 | 584.0 | 498.3 | |
| 0.00 | 2.02 | 0.00 | 2.21 | 13.29 | 57.11 | -63.85 | 78.37 | 0.8938 | 296.0 | 273.0 | |
| 0.00 | 0.26 | 0.00 | 0.29 | 12.69 | 57.32 | -63.64 | 79.03 | 0.8922 | 476.0 | 487.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
