SDO HMI 2014-10-05 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.88 | 21.08 | 3.41 | 12.15 | 13.41 | 90.03 | -30.38 | 74.67 | 0.5124 | 374.0 | 387.9 | |
|
previous
or next observation for the same group /

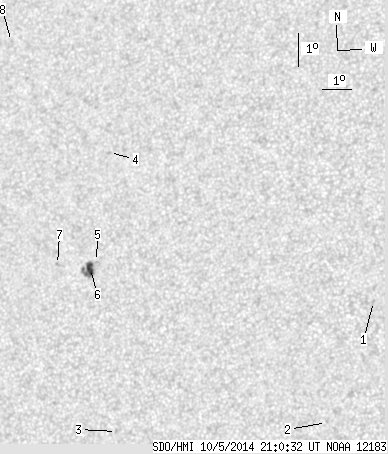

back to the solar disc SDO HMI 2014-10-05 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.75 | 12.84 | 99.09 | -21.32 | 71.56 | 0.3753 | -557.0 | -410.3 | |
| 0.00 | 0.79 | 0.00 | 0.42 | 9.15 | 97.82 | -22.58 | 81.76 | 0.3847 | -617.0 | -554.0 | |
| 0.00 | 1.49 | 0.00 | 0.85 | 8.54 | 90.76 | -29.64 | 84.12 | 0.4937 | -725.0 | -572.5 | |
| 0.00 | 1.49 | 0.00 | 0.87 | 16.91 | 89.42 | -30.99 | 68.27 | 0.5324 | 645.0 | 495.9 | |
| 0.00 | 0.44 | 0.00 | 0.25 | 13.60 | 89.48 | -30.92 | 74.42 | 0.5206 | 156.0 | 172.8 | |
| 5.88 | 12.91 | 3.41 | 7.49 | 13.37 | 89.30 | -31.11 | 74.90 | 0.5227 | 1044.5 | 761.2 | |
| 0.00 | 1.67 | 0.00 | 0.98 | 13.43 | 88.09 | -32.31 | 75.16 | 0.5400 | 784.0 | 590.6 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 20.08 | 85.02 | -35.39 | 64.92 | 0.6028 | 646.0 | 485.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
