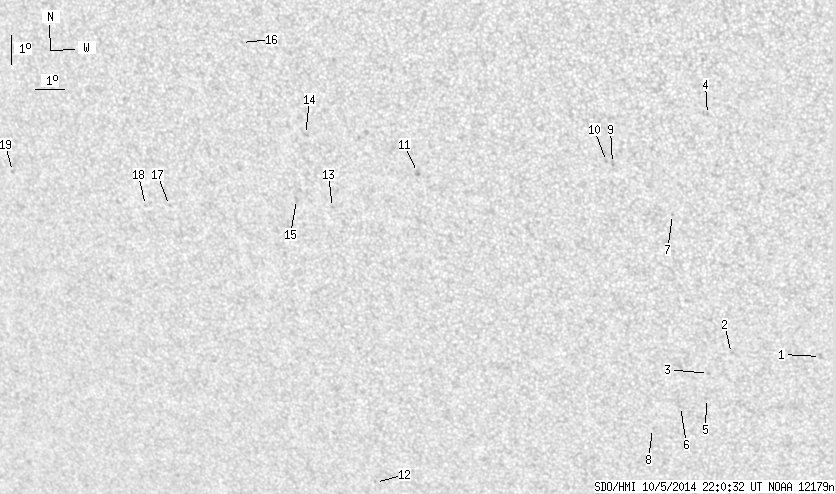

SDO HMI 2014-10-05 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.27 | 0.00 | 14.98 | -19.59 | 100.75 | -19.11 | 145.51 | 0.5450 | 58.1 | 7.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.28 | 0.00 | 1.32 | -23.36 | 112.35 | -7.51 | 166.43 | 0.5132 | 580.0 | 522.4 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -23.31 | 109.41 | -10.44 | 161.42 | 0.5245 | 542.0 | 515.9 | |
| 0.00 | 1.32 | 0.00 | 0.77 | -24.02 | 108.58 | -11.27 | 160.55 | 0.5384 | 670.0 | 514.9 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -15.35 | 109.17 | -10.69 | 154.21 | 0.4128 | 810.0 | 563.5 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -24.90 | 108.43 | -11.42 | 160.90 | 0.5511 | 557.0 | 432.6 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -25.20 | 107.52 | -12.33 | 159.72 | 0.5597 | 32.0 | 77.3 | |
| 0.00 | 0.61 | 0.00 | 0.34 | -18.65 | 107.84 | -12.01 | 154.97 | 0.4681 | 730.0 | 654.4 | |
| 0.00 | 0.44 | 0.00 | 0.27 | -26.01 | 106.48 | -13.37 | 158.75 | 0.5757 | 550.0 | 506.6 | |
| 0.00 | 1.84 | 0.00 | 1.03 | -17.01 | 106.02 | -13.83 | 149.99 | 0.4589 | 807.0 | 722.6 | |
| 0.00 | 1.49 | 0.00 | 0.83 | -16.95 | 105.83 | -14.02 | 149.58 | 0.4595 | 837.0 | 665.4 | |
| 0.00 | 3.07 | 0.00 | 1.78 | -17.53 | 99.57 | -20.29 | 140.45 | 0.5213 | -980.0 | -722.8 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -28.34 | 96.21 | -23.64 | 147.90 | 0.6666 | -559.0 | -495.6 | |
| 0.00 | 0.97 | 0.00 | 0.58 | -18.81 | 96.50 | -23.35 | 138.13 | 0.5643 | -829.0 | -612.0 | |
| 0.00 | 2.02 | 0.00 | 1.19 | -16.45 | 95.91 | -23.94 | 134.34 | 0.5464 | -726.0 | -548.2 | |
| 0.00 | 2.28 | 0.00 | 1.38 | -18.61 | 95.29 | -24.57 | 136.45 | 0.5740 | -688.0 | -514.1 | |
| 0.00 | 1.05 | 0.00 | 0.62 | -13.58 | 94.08 | -25.77 | 128.17 | 0.5397 | -618.0 | -385.4 | |
| 0.00 | 0.97 | 0.00 | 0.61 | -19.05 | 90.69 | -29.16 | 132.20 | 0.6240 | -753.0 | -659.3 | |
| 0.00 | 0.79 | 0.00 | 0.50 | -19.10 | 89.81 | -30.05 | 131.43 | 0.6333 | -540.0 | -460.3 | |
| 0.00 | 1.58 | 0.00 | 1.06 | -18.28 | 84.99 | -34.87 | 126.37 | 0.6765 | 682.0 | 553.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
