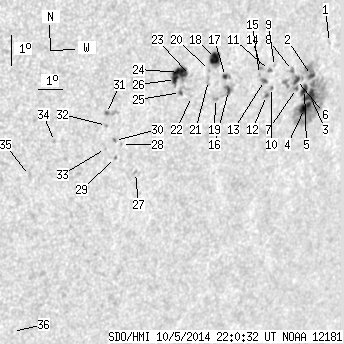

SDO HMI 2014-10-05 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.76 | 222.63 | 44.11 | 163.46 | -11.94 | 163.80 | 43.95 | 247.15 | 0.7383 | 88.1 | 194.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.87 | -10.59 | 166.43 | 46.58 | 250.06 | 0.7618 | 644.0 | 519.3 | |
| 2.28 | 130.33 | 1.73 | 99.09 | -11.57 | 165.84 | 45.98 | 248.59 | 0.7591 | 727.3 | 309.7 | |
| 8.43 | -2.00 | 6.43 | -2.00 | -12.24 | 165.94 | 46.08 | 247.80 | 0.7627 | 755.8 | 999999 | |
| 7.82 | -2.00 | 5.96 | -2.00 | -12.60 | 165.75 | 45.90 | 247.27 | 0.7621 | 846.4 | 999999 | |
| 4.74 | -2.00 | 3.59 | -2.00 | -11.99 | 165.62 | 45.76 | 247.97 | 0.7584 | 833.3 | 999999 | |
| 3.16 | -2.00 | 2.37 | -2.00 | -11.65 | 165.19 | 45.34 | 248.22 | 0.7525 | 835.0 | 999999 | |
| 0.61 | -2.00 | 0.46 | -2.00 | -11.93 | 165.25 | 45.40 | 247.89 | 0.7543 | 747.3 | 999999 | |
| 0.70 | -2.00 | 0.52 | -2.00 | -11.34 | 164.96 | 45.10 | 248.50 | 0.7488 | 821.4 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.45 | -11.15 | 164.14 | 44.29 | 248.38 | 0.7392 | 630.0 | 541.1 | |
| 0.35 | 1.49 | 0.26 | 1.10 | -11.81 | 164.14 | 44.29 | 247.54 | 0.7419 | 572.5 | 499.9 | |
| 0.70 | 2.02 | 0.51 | 1.48 | -11.26 | 163.95 | 44.09 | 248.15 | 0.7376 | 717.6 | 620.9 | |
| 0.88 | 2.99 | 0.65 | 2.19 | -12.05 | 163.98 | 44.12 | 247.16 | 0.7411 | 453.0 | 350.4 | |
| 1.58 | 3.07 | 1.15 | 2.24 | -11.56 | 163.79 | 43.94 | 247.70 | 0.7371 | 645.1 | 577.1 | |
| 0.00 | 1.49 | 0.00 | 1.08 | -11.17 | 163.59 | 43.74 | 248.11 | 0.7333 | 898.0 | 804.0 | |
| 0.00 | 0.70 | 0.00 | 0.51 | -11.35 | 163.54 | 43.69 | 247.85 | 0.7335 | 775.0 | 749.4 | |
| 2.55 | 9.05 | 1.82 | 6.45 | -11.75 | 162.31 | 42.46 | 246.74 | 0.7217 | 701.8 | 414.5 | |
| 1.67 | 3.78 | 1.18 | 2.68 | -11.30 | 162.10 | 42.25 | 247.23 | 0.7174 | -375.6 | -300.9 | |
| 9.22 | 13.35 | 6.45 | 9.35 | -10.69 | 161.59 | 41.73 | 247.78 | 0.7089 | -762.0 | -460.0 | |
| 0.00 | 2.37 | 0.00 | 1.68 | -11.97 | 161.81 | 41.96 | 246.22 | 0.7171 | 569.0 | 516.3 | |
| 0.00 | 1.14 | 0.00 | 0.80 | -11.05 | 161.40 | 41.55 | 247.21 | 0.7084 | -557.0 | -388.3 | |
| 0.00 | 3.51 | 0.00 | 2.46 | -11.37 | 161.42 | 41.56 | 246.80 | 0.7100 | 657.0 | 590.4 | |
| 0.00 | 0.88 | 0.00 | 0.61 | -11.82 | 160.80 | 40.95 | 245.89 | 0.7051 | 250.0 | 217.4 | |
| 0.00 | 1.58 | 0.00 | 1.09 | -11.15 | 160.64 | 40.79 | 246.69 | 0.7002 | -340.0 | -312.8 | |
| 10.71 | 20.38 | 7.36 | 13.99 | -11.03 | 160.22 | 40.37 | 246.64 | 0.6948 | -799.3 | -373.7 | |
| 0.97 | 6.24 | 0.67 | 4.31 | -11.66 | 160.33 | 40.47 | 245.85 | 0.6990 | -545.7 | -44.4 | |
| 3.78 | -24.00 | 2.59 | -24.00 | -11.23 | 160.05 | 40.20 | 246.28 | 0.6938 | -757.5 | 999999 | |
| 0.00 | 1.58 | 0.00 | 1.09 | -14.09 | 158.98 | 39.13 | 241.90 | 0.6962 | -603.0 | -462.3 | |
| 0.00 | 0.97 | 0.00 | 0.65 | -13.14 | 158.24 | 38.39 | 242.70 | 0.6829 | -503.0 | -449.7 | |
| 0.00 | 1.14 | 0.00 | 0.77 | -13.54 | 158.08 | 38.23 | 242.07 | 0.6833 | -358.0 | -390.2 | |
| 0.00 | 1.49 | 0.00 | 1.00 | -12.99 | 157.94 | 38.09 | 242.71 | 0.6787 | -812.0 | -774.1 | |
| 0.61 | 5.36 | 0.41 | 3.57 | -12.11 | 157.48 | 37.62 | 243.63 | 0.6685 | -777.9 | -650.7 | |
| 0.00 | 1.14 | 0.00 | 0.76 | -12.49 | 157.54 | 37.69 | 243.15 | 0.6713 | -724.0 | -681.7 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -13.22 | 157.63 | 37.78 | 242.21 | 0.6764 | -447.0 | -439.5 | |
| 0.00 | 1.32 | 0.00 | 0.86 | -12.86 | 155.60 | 35.75 | 241.40 | 0.6510 | -598.0 | -479.1 | |
| 0.00 | 1.76 | 0.00 | 1.14 | -13.88 | 154.83 | 34.98 | 239.46 | 0.6484 | -673.0 | -565.8 | |
| 0.00 | 1.05 | 0.00 | 0.72 | -18.96 | 155.23 | 35.38 | 233.17 | 0.6864 | 538.0 | 404.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
