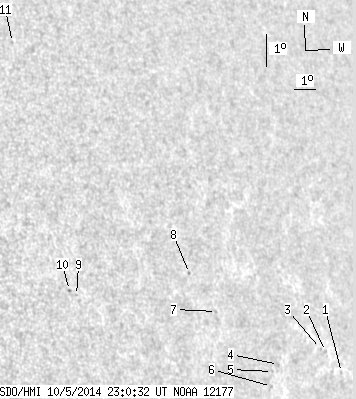

SDO HMI 2014-10-05 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.46 | 0.00 | 8.35 | 10.55 | 171.13 | 51.83 | 278.56 | 0.7824 | 138.8 | 31.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.78 | 8.47 | 175.96 | 56.66 | 275.87 | 0.8328 | -542.0 | -438.2 | |
| 0.00 | 1.84 | 0.00 | 1.61 | 9.17 | 175.25 | 55.94 | 276.69 | 0.8257 | -615.0 | -465.0 | |
| 0.00 | 0.79 | 0.00 | 0.69 | 9.29 | 175.00 | 55.70 | 276.82 | 0.8233 | -553.0 | -533.3 | |
| 0.00 | 0.97 | 0.00 | 0.79 | 9.01 | 172.72 | 53.42 | 276.41 | 0.8004 | 418.0 | 381.5 | |
| 0.00 | 0.79 | 0.00 | 0.65 | 8.83 | 172.38 | 53.08 | 276.18 | 0.7968 | 547.0 | 498.1 | |
| 0.00 | 0.97 | 0.00 | 0.79 | 8.39 | 172.24 | 52.94 | 275.62 | 0.7955 | 617.0 | 520.8 | |
| 0.00 | 0.44 | 0.00 | 0.34 | 10.86 | 170.05 | 50.75 | 278.74 | 0.7718 | 395.0 | 324.6 | |
| 0.00 | 1.14 | 0.00 | 0.87 | 12.10 | 169.06 | 49.76 | 280.39 | 0.7611 | -514.0 | -388.6 | |
| 0.00 | 0.79 | 0.00 | 0.55 | 11.86 | 163.89 | 44.59 | 280.34 | 0.7007 | 620.0 | 537.7 | |
| 0.00 | 0.97 | 0.00 | 0.67 | 12.03 | 163.62 | 44.32 | 280.61 | 0.6975 | 625.0 | 553.5 | |
| 0.00 | 0.88 | 0.00 | 0.61 | 19.67 | 163.26 | 43.96 | 291.53 | 0.7050 | 529.0 | 408.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
