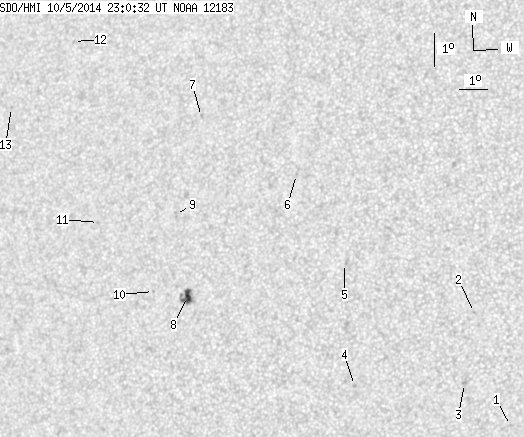

SDO HMI 2014-10-05 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.38 | 27.24 | 4.23 | 15.59 | 14.36 | 90.23 | -29.07 | 72.46 | 0.4952 | 325.6 | 260.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-05 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.51 | 9.95 | 100.47 | -18.83 | 78.22 | 0.3262 | -756.0 | -556.9 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 13.30 | 99.06 | -20.24 | 69.57 | 0.3609 | -809.0 | -675.3 | |
| 0.00 | 2.11 | 0.00 | 1.12 | 11.16 | 98.90 | -20.40 | 75.52 | 0.3548 | -665.0 | -466.8 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 10.95 | 95.29 | -24.01 | 77.67 | 0.4108 | -716.0 | -549.2 | |
| 0.00 | 0.35 | 0.00 | 0.19 | 14.60 | 94.58 | -24.72 | 69.52 | 0.4339 | -450.0 | -468.0 | |
| 0.00 | 1.05 | 0.00 | 0.59 | 17.22 | 92.56 | -26.74 | 65.29 | 0.4751 | 696.0 | 547.5 | |
| 0.00 | 1.76 | 0.00 | 1.03 | 18.81 | 88.86 | -30.44 | 64.55 | 0.5332 | 696.0 | 481.5 | |
| 7.38 | 12.47 | 4.23 | 7.16 | 13.34 | 89.27 | -30.03 | 74.61 | 0.5071 | 1019.6 | 672.6 | |
| 0.00 | 2.20 | 0.00 | 1.28 | 15.79 | 88.47 | -30.83 | 70.26 | 0.5261 | 624.0 | 531.4 | |
| 0.00 | 0.79 | 0.00 | 0.46 | 13.42 | 88.04 | -31.26 | 74.85 | 0.5250 | 560.0 | 464.6 | |
| 0.00 | 0.97 | 0.00 | 0.58 | 15.38 | 85.70 | -33.60 | 72.05 | 0.5630 | 589.0 | 477.4 | |
| 0.00 | 1.23 | 0.00 | 0.77 | 20.83 | 83.51 | -35.79 | 63.91 | 0.6109 | 570.0 | 335.0 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 18.66 | 81.62 | -37.68 | 68.07 | 0.6266 | 632.0 | 554.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
