SDO HMI 2014-10-05 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.79 | 0.00 | 18.00 | -17.78 | 78.54 | -40.76 | 121.84 | 0.7328 | 421.1 | 451.4 | |
|
previous
or next observation for the same group /

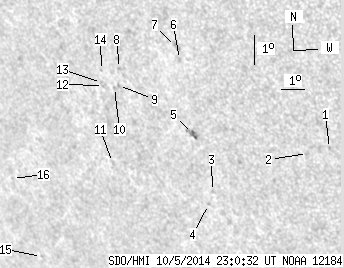

back to the solar disc SDO HMI 2014-10-05 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.64 | -18.28 | 85.01 | -34.30 | 126.80 | 0.6705 | 710.0 | 550.8 | |
| 0.00 | 2.11 | 0.00 | 1.42 | -18.50 | 84.11 | -35.20 | 126.40 | 0.6813 | 430.0 | 335.1 | |
| 0.00 | 1.23 | 0.00 | 0.89 | -20.06 | 79.88 | -39.42 | 125.33 | 0.7335 | 566.0 | 442.5 | |
| 0.00 | 0.35 | 0.00 | 0.26 | -20.52 | 79.57 | -39.73 | 125.67 | 0.7392 | 525.0 | 458.5 | |
| 0.00 | 6.59 | 0.00 | 4.72 | -18.17 | 79.60 | -39.70 | 122.89 | 0.7250 | 878.0 | 678.6 | |
| 0.00 | 1.32 | 0.00 | 0.92 | -15.76 | 79.69 | -39.61 | 119.96 | 0.7106 | 167.0 | 196.6 | |
| 0.00 | 3.43 | 0.00 | 2.40 | -15.35 | 79.63 | -39.68 | 119.40 | 0.7090 | 758.0 | 609.3 | |
| 0.00 | 1.05 | 0.00 | 0.77 | -16.25 | 77.08 | -42.22 | 119.05 | 0.7403 | 590.0 | 507.6 | |
| 0.00 | 1.32 | 0.00 | 0.97 | -16.82 | 76.89 | -42.42 | 119.63 | 0.7451 | 656.0 | 606.1 | |
| 0.00 | 1.05 | 0.00 | 0.78 | -16.90 | 76.69 | -42.61 | 119.63 | 0.7475 | 421.0 | 376.4 | |
| 0.00 | 0.79 | 0.00 | 0.61 | -19.42 | 75.82 | -43.48 | 122.14 | 0.7687 | 430.0 | 354.8 | |
| 0.00 | 1.32 | 0.00 | 0.99 | -16.87 | 76.23 | -43.07 | 119.34 | 0.7520 | 502.0 | 507.5 | |
| 0.00 | 0.97 | 0.00 | 0.72 | -16.78 | 76.17 | -43.13 | 119.19 | 0.7521 | 512.0 | 430.0 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -16.38 | 76.28 | -43.02 | 118.77 | 0.7491 | 402.0 | 379.3 | |
| 0.00 | 0.79 | 0.00 | 0.69 | -22.97 | 71.10 | -48.20 | 123.66 | 0.8268 | -455.0 | -336.9 | |
| 0.00 | 0.97 | 0.00 | 0.83 | -20.37 | 70.86 | -48.45 | 120.67 | 0.8178 | -354.0 | -336.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
