SDO HMI 2014-10-06 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.76 | 0.00 | 7.79 | 10.12 | 170.74 | 51.99 | 277.96 | 0.7833 | 256.8 | 161.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 00:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

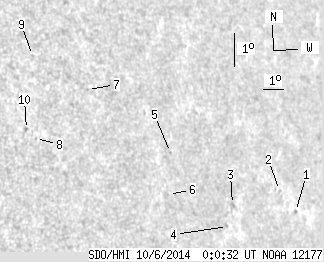

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 1.27 | 8.48 | 175.98 | 57.23 | 275.91 | 0.8382 | -466.0 | -409.9 | |
| 0.00 | 0.97 | 0.00 | 0.86 | 9.18 | 175.25 | 56.50 | 276.72 | 0.8311 | -437.0 | -381.2 | |
| 0.00 | 2.20 | 0.00 | 1.83 | 9.00 | 172.69 | 53.94 | 276.41 | 0.8057 | 183.0 | 234.6 | |
| 0.00 | 0.79 | 0.00 | 0.65 | 8.37 | 172.30 | 53.55 | 275.61 | 0.8019 | 555.0 | 489.7 | |
| 0.00 | 0.70 | 0.00 | 0.55 | 10.82 | 169.98 | 51.23 | 278.69 | 0.7770 | 505.0 | 404.4 | |
| 0.00 | 0.35 | 0.00 | 0.27 | 9.58 | 169.61 | 50.86 | 277.08 | 0.7729 | 420.0 | 349.8 | |
| 0.00 | 0.88 | 0.00 | 0.64 | 13.02 | 166.60 | 47.85 | 281.73 | 0.7400 | 538.0 | 442.1 | |
| 0.00 | 0.61 | 0.00 | 0.43 | 11.75 | 163.97 | 45.22 | 280.15 | 0.7083 | 359.0 | 366.3 | |
| 0.00 | 0.53 | 0.00 | 0.37 | 14.24 | 164.43 | 45.68 | 283.61 | 0.7158 | 236.0 | 243.7 | |
| 0.00 | 1.32 | 0.00 | 0.92 | 12.04 | 163.64 | 44.89 | 280.59 | 0.7045 | 675.0 | 550.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
