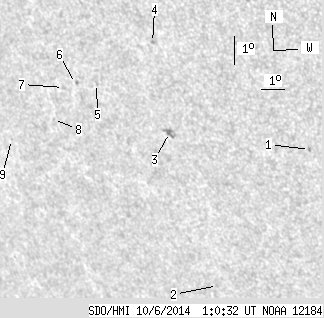

SDO HMI 2014-10-06 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.46 | 0.00 | 11.08 | -18.22 | 78.71 | -39.49 | 123.12 | 0.7234 | 447.9 | 517.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.75 | -18.34 | 85.03 | -33.17 | 127.77 | 0.6593 | 657.0 | 546.5 | |
| 0.00 | 1.67 | 0.00 | 1.23 | -23.25 | 80.03 | -38.17 | 129.83 | 0.7418 | 74.0 | 142.4 | |
| 0.00 | 6.50 | 0.00 | 4.58 | -18.16 | 79.60 | -38.60 | 123.57 | 0.7138 | 906.0 | 674.4 | |
| 0.00 | 1.14 | 0.00 | 0.79 | -15.24 | 79.63 | -38.57 | 119.93 | 0.6965 | 774.0 | 667.5 | |
| 0.00 | 1.67 | 0.00 | 1.21 | -16.76 | 76.97 | -41.23 | 120.24 | 0.7327 | 803.0 | 613.5 | |
| 0.00 | 0.53 | 0.00 | 0.39 | -16.83 | 76.07 | -42.13 | 119.81 | 0.7423 | 425.0 | 470.7 | |
| 0.00 | 1.58 | 0.00 | 1.18 | -17.00 | 75.51 | -42.69 | 119.70 | 0.7488 | 575.0 | 420.1 | |
| 0.00 | 0.97 | 0.00 | 0.74 | -18.11 | 74.75 | -43.45 | 120.61 | 0.7618 | 381.0 | 306.9 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -18.94 | 72.60 | -45.60 | 120.44 | 0.7862 | -564.0 | -536.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
