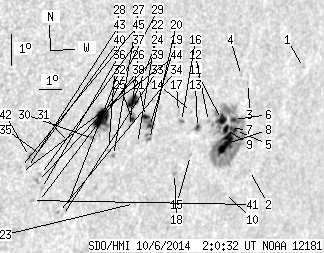

SDO HMI 2014-10-06 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.86 | 240.50 | 50.57 | 184.14 | -11.93 | 163.94 | 46.29 | 248.23 | 0.7629 | 31.6 | 152.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.22 | -10.36 | 169.20 | 51.55 | 252.18 | 0.8114 | 326.0 | 409.7 | |
| 0.00 | 0.79 | 0.00 | 0.65 | -13.42 | 167.36 | 49.71 | 247.88 | 0.8031 | 260.0 | 318.0 | |
| 0.00 | 1.05 | 0.00 | 0.84 | -10.62 | 166.62 | 48.97 | 250.96 | 0.7866 | 556.0 | 466.8 | |
| 0.00 | 1.05 | 0.00 | 0.83 | -10.34 | 166.23 | 48.58 | 251.16 | 0.7818 | 650.0 | 535.0 | |
| 1.23 | 133.11 | 0.99 | 106.13 | -12.07 | 166.34 | 48.69 | 249.10 | 0.7886 | 426.9 | 254.5 | |
| 2.02 | -5.00 | 1.61 | -5.00 | -11.71 | 166.16 | 48.51 | 249.46 | 0.7856 | 565.0 | 999999 | |
| 2.55 | -5.00 | 2.03 | -5.00 | -11.98 | 166.09 | 48.44 | 249.10 | 0.7858 | 604.6 | 999999 | |
| 15.02 | -5.00 | 11.99 | -5.00 | -12.45 | 166.02 | 48.37 | 248.51 | 0.7867 | 763.2 | 999999 | |
| 3.69 | -5.00 | 2.93 | -5.00 | -11.99 | 165.86 | 48.21 | 249.00 | 0.7835 | 783.5 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.43 | -14.06 | 166.35 | 48.71 | 246.72 | 0.7957 | 112.0 | 196.3 | |
| 6.68 | -5.00 | 5.26 | -5.00 | -11.66 | 165.60 | 47.95 | 249.30 | 0.7797 | 842.6 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.89 | -11.67 | 165.01 | 47.36 | 249.05 | 0.7737 | 754.0 | 665.5 | |
| 1.49 | 3.43 | 1.15 | 2.65 | -11.82 | 164.54 | 46.89 | 248.68 | 0.7694 | 584.2 | 398.3 | |
| 0.00 | 0.97 | 0.00 | 0.74 | -11.28 | 164.16 | 46.51 | 249.18 | 0.7635 | 697.0 | 665.5 | |
| 0.00 | 1.32 | 0.00 | 1.02 | -12.69 | 164.43 | 46.78 | 247.56 | 0.7715 | 256.0 | 261.1 | |
| 0.00 | 1.67 | 0.00 | 1.27 | -11.56 | 163.77 | 46.12 | 248.67 | 0.7604 | 643.0 | 618.1 | |
| 0.00 | 1.93 | 0.00 | 1.46 | -11.26 | 163.58 | 45.93 | 248.96 | 0.7573 | 597.0 | 513.5 | |
| 0.00 | 1.67 | 0.00 | 1.28 | -13.20 | 163.84 | 46.19 | 246.67 | 0.7674 | 269.0 | 188.8 | |
| 1.49 | 13.53 | 1.11 | 9.99 | -11.60 | 162.38 | 44.73 | 248.01 | 0.7458 | 770.2 | 217.2 | |
| 0.62 | 4.74 | 0.46 | 3.52 | -12.02 | 162.47 | 44.82 | 247.53 | 0.7483 | 566.9 | 541.3 | |
| 3.08 | -19.00 | 2.26 | -19.00 | -11.27 | 162.14 | 44.49 | 248.33 | 0.7419 | -419.8 | 999999 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -12.10 | 161.96 | 44.31 | 247.19 | 0.7433 | 594.0 | 535.1 | |
| 0.00 | 1.41 | 0.00 | 1.06 | -14.02 | 162.27 | 44.62 | 244.94 | 0.7546 | 673.0 | 530.8 | |
| 8.52 | 10.90 | 6.18 | 7.90 | -10.75 | 161.49 | 43.84 | 248.71 | 0.7326 | -739.9 | -440.9 | |
| 1.58 | 4.74 | 1.15 | 3.46 | -11.32 | 161.59 | 43.94 | 248.02 | 0.7361 | 604.7 | 340.3 | |
| 0.00 | 1.32 | 0.00 | 0.96 | -11.53 | 161.51 | 43.86 | 247.71 | 0.7360 | 358.0 | 379.9 | |
| 0.00 | 1.76 | 0.00 | 1.28 | -12.40 | 161.00 | 43.35 | 246.36 | 0.7342 | -320.0 | -155.0 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -12.22 | 160.75 | 43.10 | 246.47 | 0.7308 | -482.0 | -422.8 | |
| 18.89 | 31.45 | 13.45 | 22.42 | -11.18 | 160.26 | 42.61 | 247.58 | 0.7208 | -743.2 | -200.7 | |
| 0.00 | 2.11 | 0.00 | 1.50 | -11.78 | 160.00 | 42.35 | 246.66 | 0.7205 | -554.0 | -379.6 | |
| 0.00 | 0.70 | 0.00 | 0.49 | -11.84 | 159.06 | 41.41 | 246.12 | 0.7103 | -478.0 | -408.1 | |
| 0.00 | 0.26 | 0.00 | 0.19 | -13.91 | 159.36 | 41.71 | 243.59 | 0.7233 | -380.0 | -319.0 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -14.16 | 159.24 | 41.59 | 243.22 | 0.7233 | -579.0 | -435.3 | |
| 0.00 | 0.97 | 0.00 | 0.69 | -14.05 | 159.05 | 41.40 | 243.26 | 0.7208 | -545.0 | -406.0 | |
| 0.00 | 1.85 | 0.00 | 1.27 | -12.16 | 157.98 | 40.33 | 245.12 | 0.6997 | -556.0 | -578.3 | |
| 0.00 | 1.58 | 0.00 | 1.10 | -13.22 | 158.18 | 40.53 | 243.85 | 0.7072 | -329.0 | -345.3 | |
| 0.00 | 1.32 | 0.00 | 0.92 | -12.77 | 158.05 | 40.40 | 244.37 | 0.7035 | -559.0 | -518.6 | |
| 0.00 | 0.79 | 0.00 | 0.55 | -13.63 | 158.14 | 40.49 | 243.29 | 0.7088 | -306.0 | -330.3 | |
| 0.00 | 2.02 | 0.00 | 1.40 | -12.98 | 157.97 | 40.32 | 244.04 | 0.7037 | -814.0 | -680.7 | |
| 0.00 | 0.62 | 0.00 | 0.42 | -12.17 | 157.70 | 40.05 | 244.95 | 0.6966 | -662.0 | -647.3 | |
| 0.00 | 1.49 | 0.00 | 1.04 | -13.58 | 157.89 | 40.24 | 243.22 | 0.7057 | -713.0 | -562.5 | |
| 0.00 | 3.08 | 0.00 | 2.11 | -12.16 | 157.50 | 39.85 | 244.86 | 0.6942 | -837.0 | -654.1 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -12.50 | 157.48 | 39.83 | 244.40 | 0.6957 | -648.0 | -537.0 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -12.64 | 157.26 | 39.61 | 244.09 | 0.6940 | -655.0 | -609.0 | |
| 0.00 | 0.97 | 0.00 | 0.66 | -12.48 | 157.19 | 39.54 | 244.26 | 0.6924 | -660.0 | -568.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
