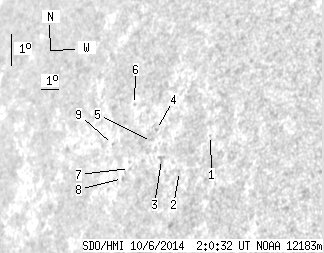

SDO HMI 2014-10-06 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.61 | 0.00 | 8.02 | 13.27 | 59.28 | -58.37 | 78.37 | 0.8480 | 40.0 | -62.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.23 | 14.04 | 62.37 | -55.27 | 77.37 | 0.8193 | -458.0 | -424.3 | |
| 0.00 | 0.97 | 0.00 | 0.86 | 12.82 | 61.09 | -56.56 | 78.88 | 0.8314 | -181.0 | -195.9 | |
| 0.00 | 3.16 | 0.00 | 2.89 | 13.08 | 59.97 | -57.68 | 78.59 | 0.8419 | -377.0 | -303.4 | |
| 0.00 | 1.05 | 0.00 | 0.98 | 13.94 | 59.34 | -58.31 | 77.58 | 0.8477 | -277.0 | -234.3 | |
| 0.00 | 0.35 | 0.00 | 0.33 | 13.56 | 59.20 | -58.45 | 78.03 | 0.8489 | 225.0 | 234.5 | |
| 0.00 | 0.88 | 0.00 | 0.85 | 14.56 | 57.74 | -59.90 | 76.89 | 0.8619 | -256.0 | -205.9 | |
| 0.00 | 0.44 | 0.00 | 0.42 | 12.65 | 58.23 | -59.42 | 79.12 | 0.8575 | 635.0 | 601.6 | |
| 0.00 | 0.88 | 0.00 | 0.85 | 12.31 | 57.93 | -59.72 | 79.51 | 0.8601 | 560.0 | 499.5 | |
| 0.00 | 0.62 | 0.00 | 0.61 | 13.26 | 56.93 | -60.72 | 78.41 | 0.8687 | 489.0 | 481.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
