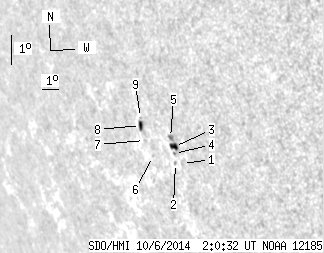

SDO HMI 2014-10-06 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.50 | 19.25 | 6.74 | 19.90 | -12.80 | 58.98 | -58.67 | 108.42 | 0.8798 | 94.5 | 92.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 02:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 1.33 | -13.42 | 59.99 | -57.66 | 109.39 | 0.8732 | 367.0 | 293.1 | |
| 0.00 | 1.23 | 0.00 | 1.26 | -13.46 | 59.56 | -58.09 | 109.31 | 0.8767 | 279.0 | 247.1 | |
| 3.69 | 5.62 | 3.74 | 5.70 | -12.91 | 59.72 | -57.93 | 108.75 | 0.8743 | 498.3 | 249.0 | |
| 0.00 | 1.05 | 0.00 | 1.07 | -13.14 | 59.63 | -58.02 | 108.98 | 0.8755 | 506.0 | 446.3 | |
| 0.00 | 2.55 | 0.00 | 2.58 | -12.64 | 59.58 | -58.07 | 108.41 | 0.8748 | 487.0 | 350.7 | |
| 0.00 | 0.53 | 0.00 | 0.56 | -13.37 | 58.22 | -59.43 | 108.83 | 0.8869 | -305.0 | -262.7 | |
| 0.00 | 0.97 | 0.00 | 1.03 | -12.90 | 57.92 | -59.73 | 108.23 | 0.8882 | -290.0 | -219.8 | |
| 2.81 | 5.10 | 3.00 | 5.44 | -12.43 | 57.86 | -59.79 | 107.70 | 0.8878 | -361.9 | -222.4 | |
| 0.00 | 0.88 | 0.00 | 0.93 | -12.17 | 57.96 | -59.69 | 107.44 | 0.8865 | -524.0 | -469.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
