SDO HMI 2014-10-06 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.08 | 0.00 | 4.62 | -13.79 | 138.79 | 21.69 | 226.47 | 0.4958 | -198.1 | -202.7 | |
|
previous
or next observation for the same group /

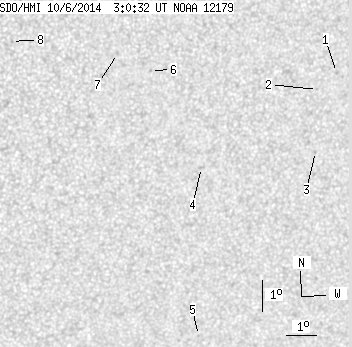

back to the solar disc SDO HMI 2014-10-06 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.77 | -12.53 | 143.15 | 26.05 | 233.74 | 0.5338 | 661.0 | 580.3 | |
| 0.00 | 0.44 | 0.00 | 0.26 | -13.04 | 142.56 | 25.46 | 232.33 | 0.5311 | 534.0 | 459.4 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -15.03 | 142.72 | 25.62 | 229.57 | 0.5508 | 690.0 | 569.4 | |
| 0.00 | 1.58 | 0.00 | 0.91 | -15.36 | 138.89 | 21.79 | 224.52 | 0.5126 | -703.0 | -571.1 | |
| 0.00 | 0.70 | 0.00 | 0.43 | -20.92 | 139.53 | 22.43 | 218.25 | 0.5778 | -641.0 | -541.5 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -12.17 | 136.91 | 19.81 | 226.61 | 0.4578 | -589.0 | -541.6 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -11.59 | 135.80 | 18.70 | 225.90 | 0.4391 | -843.0 | -575.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -11.09 | 132.38 | 15.28 | 220.95 | 0.3962 | -694.0 | -585.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
