SDO HMI 2014-10-06 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.38 | 18.45 | 7.53 | 18.80 | -12.82 | 58.97 | -58.13 | 108.59 | 0.8755 | 82.0 | 90.5 | |
|
previous
or next observation for the same group /

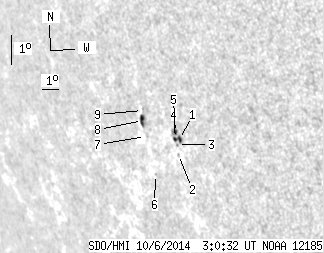

back to the solar disc SDO HMI 2014-10-06 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.76 | 9.23 | 1.74 | 9.20 | -12.91 | 59.86 | -57.24 | 108.95 | 0.8687 | 603.0 | 245.4 | |
| 0.00 | 1.05 | 0.00 | 1.06 | -13.41 | 59.61 | -57.49 | 109.43 | 0.8718 | 435.0 | 316.8 | |
| 0.00 | 0.97 | 0.00 | 0.97 | -13.09 | 59.68 | -57.42 | 109.09 | 0.8706 | 381.0 | 422.5 | |
| 1.23 | -1.00 | 1.23 | -1.00 | -12.90 | 59.63 | -57.47 | 108.87 | 0.8705 | 334.6 | 999999 | |
| 1.14 | -1.00 | 1.14 | -1.00 | -12.71 | 59.70 | -57.40 | 108.68 | 0.8695 | 534.6 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.75 | -14.21 | 57.93 | -59.17 | 109.81 | 0.8867 | 461.0 | 415.2 | |
| 0.00 | 0.44 | 0.00 | 0.46 | -13.02 | 57.81 | -59.29 | 108.48 | 0.8851 | -355.0 | -336.8 | |
| 3.25 | 4.83 | 3.42 | 5.08 | -12.51 | 57.82 | -59.28 | 107.93 | 0.8840 | -422.6 | -315.7 | |
| 0.00 | 1.23 | 0.00 | 1.28 | -12.19 | 57.95 | -59.15 | 107.60 | 0.8824 | -520.0 | -468.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
