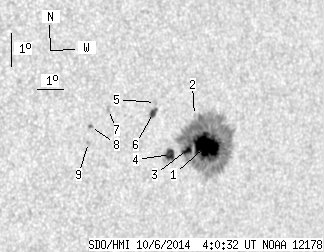

SDO HMI 2014-10-06 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.59 | 265.93 | 33.06 | 170.91 | -1.51 | 155.26 | 38.71 | 259.67 | 0.6377 | 941.3 | 329.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.77 | 240.26 | 23.04 | 154.87 | -1.55 | 155.55 | 39.00 | 259.70 | 0.6417 | 1131.5 | 327.8 | |
| 0.00 | 0.97 | 0.00 | 0.62 | -0.60 | 155.08 | 38.53 | 261.01 | 0.6329 | 193.0 | 185.4 | |
| 5.89 | -1.00 | 3.76 | -1.00 | -1.61 | 154.82 | 38.27 | 259.35 | 0.6323 | 1046.7 | 999999 | |
| 6.77 | 11.51 | 4.28 | 7.28 | -1.72 | 154.18 | 37.63 | 258.97 | 0.6240 | 930.1 | 607.8 | |
| 0.00 | 2.20 | 0.00 | 1.37 | -0.11 | 153.59 | 37.04 | 261.34 | 0.6116 | 699.0 | 510.0 | |
| 3.16 | 5.01 | 1.98 | 3.13 | -0.40 | 153.52 | 36.97 | 260.84 | 0.6114 | 864.6 | 685.0 | |
| 0.00 | 3.08 | 0.00 | 1.88 | -0.20 | 151.84 | 35.29 | 260.63 | 0.5878 | 778.0 | 602.2 | |
| 0.00 | 1.49 | 0.00 | 0.91 | -0.67 | 151.19 | 34.63 | 259.60 | 0.5800 | -763.0 | -642.9 | |
| 0.00 | 1.41 | 0.00 | 0.85 | -1.15 | 151.12 | 34.57 | 258.77 | 0.5805 | -780.0 | -593.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
