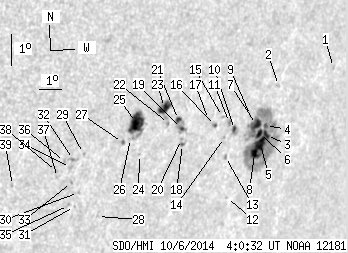

SDO HMI 2014-10-06 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.21 | 237.42 | 50.42 | 186.60 | -11.93 | 164.17 | 47.61 | 248.78 | 0.7765 | 26.3 | 151.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.99 | -10.25 | 169.18 | 52.63 | 252.67 | 0.8214 | 371.0 | 338.1 | |
| 0.00 | 1.93 | 0.00 | 1.58 | -10.57 | 166.56 | 50.00 | 251.40 | 0.7968 | 594.0 | 440.8 | |
| 3.69 | 138.32 | 3.03 | 113.06 | -12.11 | 166.35 | 49.80 | 249.47 | 0.7996 | 496.1 | 250.9 | |
| 1.49 | -3.00 | 1.22 | -3.00 | -11.79 | 166.22 | 49.67 | 249.82 | 0.7973 | 598.8 | 999999 | |
| 9.14 | -3.00 | 7.48 | -3.00 | -12.34 | 166.12 | 49.57 | 249.11 | 0.7982 | 773.6 | 999999 | |
| 3.25 | -3.00 | 2.65 | -3.00 | -12.02 | 165.99 | 49.44 | 249.45 | 0.7958 | 885.0 | 999999 | |
| 5.80 | -3.00 | 4.69 | -3.00 | -11.72 | 165.78 | 49.23 | 249.73 | 0.7927 | 903.8 | 999999 | |
| 6.42 | -3.00 | 5.24 | -3.00 | -12.64 | 165.92 | 49.36 | 248.68 | 0.7971 | 874.8 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.63 | -11.40 | 165.42 | 48.87 | 249.98 | 0.7881 | 708.0 | 688.6 | |
| 1.85 | 4.22 | 1.46 | 3.34 | -11.78 | 164.77 | 48.22 | 249.26 | 0.7828 | 577.0 | 330.7 | |
| 0.00 | 2.28 | 0.00 | 1.80 | -11.54 | 164.48 | 47.93 | 249.45 | 0.7790 | 618.0 | 526.3 | |
| 0.00 | 0.79 | 0.00 | 0.64 | -13.94 | 164.95 | 48.40 | 246.73 | 0.7922 | -295.0 | -287.1 | |
| 0.00 | 1.85 | 0.00 | 1.47 | -12.61 | 164.55 | 48.00 | 248.17 | 0.7835 | 342.0 | 376.1 | |
| 0.00 | 0.97 | 0.00 | 0.76 | -12.00 | 164.36 | 47.81 | 248.84 | 0.7794 | 538.0 | 401.8 | |
| 0.00 | 1.23 | 0.00 | 0.96 | -11.32 | 164.11 | 47.56 | 249.57 | 0.7745 | 636.0 | 606.2 | |
| 0.70 | 1.76 | 0.55 | 1.37 | -11.58 | 163.85 | 47.30 | 249.15 | 0.7727 | 566.6 | 500.6 | |
| 0.00 | 1.05 | 0.00 | 0.81 | -11.36 | 163.49 | 46.94 | 249.27 | 0.7682 | 639.0 | 555.9 | |
| 0.70 | 2.46 | 0.53 | 1.87 | -12.06 | 162.48 | 45.93 | 247.98 | 0.7602 | 624.1 | 485.1 | |
| 1.23 | 12.39 | 0.93 | 9.33 | -11.54 | 162.32 | 45.77 | 248.55 | 0.7566 | 673.8 | 229.4 | |
| 0.00 | 1.14 | 0.00 | 0.87 | -11.89 | 162.40 | 45.85 | 248.15 | 0.7587 | 804.0 | 631.5 | |
| 2.46 | -19.00 | 1.85 | -19.00 | -11.24 | 162.13 | 45.58 | 248.84 | 0.7534 | -490.4 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.52 | -11.33 | 161.71 | 45.16 | 248.55 | 0.7493 | 657.0 | 530.8 | |
| 8.44 | 14.32 | 6.24 | 10.59 | -10.81 | 161.43 | 44.88 | 249.09 | 0.7443 | -716.4 | -220.9 | |
| 0.00 | 0.70 | 0.00 | 0.52 | -12.22 | 160.64 | 44.09 | 246.95 | 0.7413 | -423.0 | -331.9 | |
| 19.51 | 29.79 | 14.17 | 21.65 | -11.19 | 160.31 | 43.75 | 248.11 | 0.7335 | -766.7 | -204.7 | |
| 0.00 | 0.62 | 0.00 | 0.45 | -11.68 | 160.15 | 43.59 | 247.41 | 0.7337 | -356.0 | -314.9 | |
| 0.53 | 1.67 | 0.38 | 1.21 | -11.78 | 159.83 | 43.27 | 247.13 | 0.7306 | -411.8 | -326.7 | |
| 0.00 | 0.97 | 0.00 | 0.70 | -14.07 | 159.26 | 42.71 | 243.94 | 0.7347 | -582.0 | -443.1 | |
| 0.00 | 1.05 | 0.00 | 0.74 | -11.99 | 158.24 | 41.69 | 246.07 | 0.7141 | -301.0 | -372.3 | |
| 0.00 | 1.23 | 0.00 | 0.88 | -13.23 | 158.28 | 41.73 | 244.49 | 0.7203 | -483.0 | -430.7 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -13.67 | 158.21 | 41.66 | 243.89 | 0.7216 | -397.0 | -345.6 | |
| 0.00 | 4.04 | 0.00 | 2.84 | -12.15 | 157.86 | 41.31 | 245.66 | 0.7106 | -664.0 | -577.0 | |
| 0.00 | 1.05 | 0.00 | 0.74 | -12.88 | 157.92 | 41.37 | 244.74 | 0.7147 | -772.0 | -713.1 | |
| 0.00 | 2.28 | 0.00 | 1.60 | -12.40 | 157.79 | 41.23 | 245.30 | 0.7109 | -724.0 | -611.2 | |
| 0.00 | 1.14 | 0.00 | 0.81 | -13.61 | 157.95 | 41.40 | 243.82 | 0.7185 | -679.0 | -587.3 | |
| 0.00 | 1.32 | 0.00 | 0.92 | -12.19 | 157.50 | 40.95 | 245.43 | 0.7067 | -792.0 | -680.0 | |
| 0.00 | 1.23 | 0.00 | 0.86 | -12.68 | 157.31 | 40.76 | 244.68 | 0.7069 | -637.0 | -526.4 | |
| 0.00 | 1.32 | 0.00 | 0.92 | -12.48 | 157.23 | 40.68 | 244.90 | 0.7051 | -656.0 | -579.5 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -12.79 | 155.52 | 38.97 | 243.53 | 0.6875 | -625.0 | -455.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
