SDO HMI 2014-10-06 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.80 | 0.00 | 5.01 | -12.38 | 138.88 | 22.87 | 230.38 | 0.4947 | 311.2 | 162.2 | |
|
previous
or next observation for the same group /

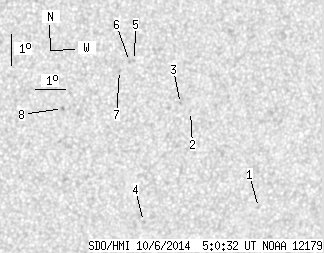

back to the solar disc SDO HMI 2014-10-06 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.84 | -15.06 | 142.75 | 26.74 | 230.73 | 0.5634 | 597.0 | 469.4 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -11.87 | 140.06 | 24.06 | 232.60 | 0.5041 | 602.0 | 527.3 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -11.60 | 139.70 | 23.70 | 232.62 | 0.4974 | 769.0 | 584.2 | |
| 0.00 | 1.41 | 0.00 | 0.82 | -15.32 | 138.84 | 22.83 | 225.91 | 0.5231 | -657.0 | -625.2 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -10.18 | 138.06 | 22.06 | 233.03 | 0.4645 | 669.0 | 549.1 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -10.20 | 137.90 | 21.89 | 232.78 | 0.4627 | 757.0 | 625.4 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -10.47 | 137.59 | 21.58 | 231.92 | 0.4614 | 561.0 | 530.5 | |
| 0.00 | 1.41 | 0.00 | 0.78 | -11.58 | 135.81 | 19.80 | 227.58 | 0.4514 | -808.0 | -680.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
