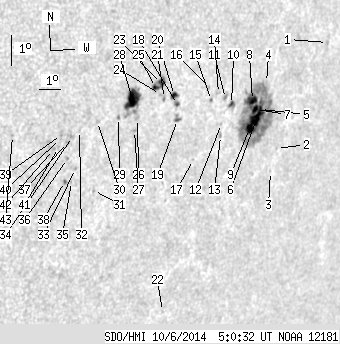

SDO HMI 2014-10-06 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.65 | 241.24 | 45.18 | 192.14 | -12.01 | 164.27 | 48.27 | 248.96 | 0.7833 | 46.6 | 130.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 1.46 | -10.24 | 169.19 | 53.19 | 252.86 | 0.8267 | 395.0 | 336.8 | |
| 0.00 | 0.70 | 0.00 | 0.60 | -13.40 | 167.48 | 51.48 | 248.59 | 0.8197 | 184.0 | 221.0 | |
| 0.00 | 0.70 | 0.00 | 0.61 | -14.12 | 167.40 | 51.40 | 247.72 | 0.8212 | 377.0 | 297.2 | |
| 0.00 | 1.23 | 0.00 | 1.02 | -11.23 | 166.40 | 50.40 | 250.76 | 0.8027 | 278.0 | 233.1 | |
| 1.93 | 144.04 | 1.60 | 119.23 | -12.07 | 166.32 | 50.32 | 249.73 | 0.8045 | 613.9 | 241.5 | |
| 11.07 | -5.00 | 9.18 | -5.00 | -12.34 | 166.20 | 50.20 | 249.36 | 0.8042 | 720.1 | 999999 | |
| 2.99 | -5.00 | 2.46 | -5.00 | -12.04 | 166.08 | 50.07 | 249.66 | 0.8021 | 923.1 | 999999 | |
| 6.42 | -5.00 | 5.26 | -5.00 | -11.74 | 165.86 | 49.85 | 249.94 | 0.7990 | 897.6 | 999999 | |
| 5.71 | -5.00 | 4.72 | -5.00 | -12.63 | 165.94 | 49.94 | 248.92 | 0.8026 | 885.3 | 999999 | |
| 1.76 | 4.04 | 1.41 | 3.25 | -11.78 | 164.87 | 48.87 | 249.52 | 0.7893 | 572.8 | 238.9 | |
| 0.00 | 1.67 | 0.00 | 1.33 | -11.56 | 164.54 | 48.54 | 249.66 | 0.7853 | 662.0 | 497.7 | |
| 0.00 | 0.53 | 0.00 | 0.42 | -12.35 | 164.54 | 48.54 | 248.71 | 0.7880 | 639.0 | 577.0 | |
| 0.00 | 1.49 | 0.00 | 1.20 | -12.73 | 164.59 | 48.59 | 248.27 | 0.7898 | 518.0 | 455.2 | |
| 0.00 | 1.41 | 0.00 | 1.11 | -11.37 | 164.18 | 48.17 | 249.75 | 0.7809 | 689.0 | 548.9 | |
| 0.00 | 1.41 | 0.00 | 1.10 | -11.57 | 163.90 | 47.89 | 249.40 | 0.7788 | 714.0 | 567.6 | |
| 0.00 | 0.97 | 0.00 | 0.76 | -11.15 | 163.71 | 47.71 | 249.84 | 0.7754 | 683.0 | 613.3 | |
| 0.00 | 0.88 | 0.00 | 0.69 | -13.39 | 163.52 | 47.51 | 247.03 | 0.7814 | -508.0 | -370.0 | |
| 0.88 | 8.52 | 0.67 | 6.48 | -11.56 | 162.36 | 46.35 | 248.78 | 0.7628 | 697.9 | 188.5 | |
| 0.88 | 4.13 | 0.67 | 3.17 | -12.04 | 162.46 | 46.46 | 248.23 | 0.7657 | 600.4 | 538.9 | |
| 2.72 | -18.00 | 2.07 | -18.00 | -11.26 | 162.16 | 46.16 | 249.07 | 0.7596 | -419.2 | 999999 | |
| 0.00 | 2.02 | 0.00 | 1.52 | -11.32 | 161.73 | 45.73 | 248.82 | 0.7553 | 742.0 | 499.4 | |
| 0.00 | 0.88 | 0.00 | 0.72 | -18.28 | 163.60 | 47.59 | 241.30 | 0.8015 | 302.0 | 292.9 | |
| 2.90 | 11.78 | 2.17 | 8.79 | -10.83 | 161.50 | 45.50 | 249.33 | 0.7510 | -637.7 | -551.2 | |
| 0.00 | 1.14 | 0.00 | 0.86 | -11.18 | 161.53 | 45.52 | 248.91 | 0.7526 | 198.0 | 165.0 | |
| 2.37 | -23.00 | 1.77 | -23.00 | -10.94 | 161.26 | 45.26 | 249.10 | 0.7488 | -770.1 | 999999 | |
| 0.00 | 1.67 | 0.00 | 1.24 | -11.86 | 160.67 | 44.66 | 247.67 | 0.7460 | 290.0 | 236.4 | |
| 0.00 | 1.49 | 0.00 | 1.11 | -12.23 | 160.61 | 44.61 | 247.18 | 0.7470 | -410.0 | -317.8 | |
| 17.58 | 30.58 | 12.89 | 22.45 | -11.24 | 160.33 | 44.32 | 248.31 | 0.7398 | -801.2 | -253.3 | |
| 0.00 | 1.14 | 0.00 | 0.83 | -11.76 | 159.83 | 43.83 | 247.42 | 0.7366 | -578.0 | -482.4 | |
| 0.00 | 2.11 | 0.00 | 1.52 | -11.81 | 158.95 | 42.95 | 246.93 | 0.7272 | -115.0 | -219.6 | |
| 0.00 | 0.88 | 0.00 | 0.65 | -14.02 | 159.26 | 43.25 | 244.28 | 0.7402 | -449.0 | -458.0 | |
| 0.00 | 0.88 | 0.00 | 0.63 | -12.04 | 158.24 | 42.24 | 246.29 | 0.7204 | -386.0 | -415.7 | |
| 0.00 | 1.14 | 0.00 | 0.82 | -13.25 | 158.32 | 42.32 | 244.78 | 0.7267 | -535.0 | -478.3 | |
| 0.00 | 1.85 | 0.00 | 1.31 | -12.21 | 157.99 | 41.98 | 245.94 | 0.7183 | -576.0 | -511.3 | |
| 0.00 | 0.62 | 0.00 | 0.44 | -13.65 | 158.24 | 42.24 | 244.22 | 0.7278 | -457.0 | -369.6 | |
| 0.00 | 1.05 | 0.00 | 0.75 | -12.90 | 157.92 | 41.91 | 245.02 | 0.7207 | -740.0 | -671.5 | |
| 0.00 | 2.11 | 0.00 | 1.49 | -12.38 | 157.81 | 41.81 | 245.63 | 0.7172 | -730.0 | -626.9 | |
| 0.44 | 1.41 | 0.31 | 1.01 | -13.63 | 157.95 | 41.94 | 244.10 | 0.7244 | -606.8 | -550.1 | |
| 0.00 | 1.58 | 0.00 | 1.11 | -12.11 | 157.51 | 41.51 | 245.83 | 0.7126 | -581.0 | -528.1 | |
| 0.00 | 0.62 | 0.00 | 0.43 | -12.23 | 157.50 | 41.49 | 245.66 | 0.7130 | -685.0 | -580.6 | |
| 0.00 | 0.79 | 0.00 | 0.56 | -12.51 | 157.47 | 41.46 | 245.28 | 0.7140 | -720.0 | -636.7 | |
| 0.00 | 1.41 | 0.00 | 0.99 | -12.56 | 157.27 | 41.27 | 245.11 | 0.7120 | -724.0 | -635.9 | |
| 0.00 | 0.70 | 0.00 | 0.48 | -11.99 | 155.51 | 39.50 | 244.92 | 0.6894 | -631.0 | -563.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
