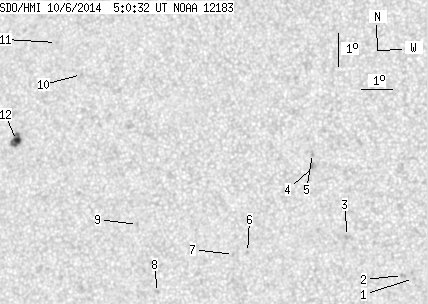

SDO HMI 2014-10-06 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.65 | 29.36 | 4.26 | 15.71 | 12.31 | 94.80 | -21.21 | 72.68 | 0.3707 | -42.4 | -338.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.49 | 9.67 | 102.57 | -13.44 | 75.56 | 0.2376 | -801.0 | -505.0 | |
| 0.00 | 2.55 | 0.00 | 1.30 | 9.75 | 102.22 | -13.78 | 75.54 | 0.2436 | -704.0 | -589.9 | |
| 0.00 | 2.55 | 0.00 | 1.31 | 10.87 | 100.44 | -15.57 | 72.92 | 0.2770 | -724.0 | -700.3 | |
| 0.00 | 3.43 | 0.00 | 1.78 | 12.95 | 99.23 | -16.78 | 67.31 | 0.3063 | -776.0 | -774.4 | |
| 0.00 | 2.37 | 0.00 | 1.24 | 13.34 | 99.17 | -16.84 | 66.18 | 0.3094 | -841.0 | -694.4 | |
| 0.00 | 1.14 | 0.00 | 0.60 | 10.29 | 97.28 | -18.73 | 77.04 | 0.3256 | -788.0 | -571.0 | |
| 0.00 | 1.32 | 0.00 | 0.69 | 10.22 | 96.83 | -19.17 | 77.50 | 0.3325 | -546.0 | -525.3 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 8.99 | 94.44 | -21.56 | 81.87 | 0.3683 | -842.0 | -648.3 | |
| 0.00 | 1.32 | 0.00 | 0.71 | 11.00 | 93.64 | -22.36 | 76.83 | 0.3852 | -629.0 | -510.2 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 15.44 | 91.31 | -24.69 | 67.60 | 0.4374 | 788.0 | 537.1 | |
| 0.00 | 0.97 | 0.00 | 0.54 | 16.37 | 90.32 | -25.68 | 66.28 | 0.4561 | 806.0 | 675.6 | |
| 7.65 | 10.37 | 4.26 | 5.77 | 13.34 | 89.33 | -26.67 | 73.25 | 0.4580 | 1035.2 | 751.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
