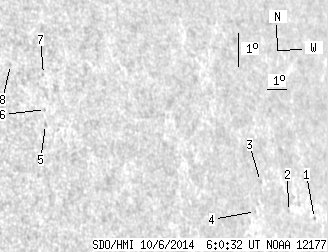

SDO HMI 2014-10-06 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.23 | 0.00 | 5.25 | 10.77 | 169.67 | 54.21 | 278.90 | 0.8050 | 251.2 | 160.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 1.14 | 8.37 | 176.18 | 60.72 | 275.97 | 0.8697 | -303.0 | -310.7 | |
| 0.00 | 0.26 | 0.00 | 0.25 | 8.73 | 174.68 | 59.23 | 276.31 | 0.8565 | -453.0 | -417.3 | |
| 0.00 | 1.58 | 0.00 | 1.45 | 9.77 | 173.32 | 57.86 | 277.49 | 0.8438 | -9.0 | 77.4 | |
| 0.00 | 0.26 | 0.00 | 0.24 | 8.91 | 172.81 | 57.35 | 276.45 | 0.8393 | 505.0 | 494.7 | |
| 0.00 | 1.32 | 0.00 | 0.96 | 12.42 | 163.07 | 47.62 | 280.95 | 0.7371 | 577.0 | 481.7 | |
| 0.00 | 0.62 | 0.00 | 0.45 | 12.86 | 163.19 | 47.73 | 281.55 | 0.7386 | 555.0 | 505.3 | |
| 0.00 | 0.35 | 0.00 | 0.26 | 13.92 | 163.37 | 47.92 | 282.96 | 0.7415 | 521.0 | 437.8 | |
| 0.00 | 0.70 | 0.00 | 0.50 | 14.34 | 161.98 | 46.52 | 283.68 | 0.7259 | 617.0 | 524.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
