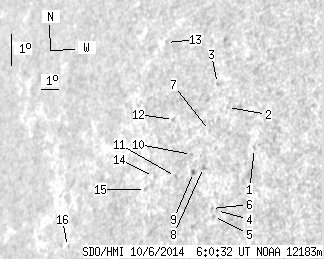

SDO HMI 2014-10-06 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.53 | 17.47 | 0.46 | 15.50 | 13.35 | 58.95 | -56.50 | 78.22 | 0.8306 | -148.0 | -104.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.79 | 14.02 | 62.47 | -52.99 | 77.27 | 0.7965 | -430.0 | -357.9 | |
| 0.00 | 0.26 | 0.00 | 0.22 | 15.12 | 60.65 | -54.81 | 76.01 | 0.8153 | -469.0 | -383.3 | |
| 0.00 | 0.97 | 0.00 | 0.84 | 15.78 | 59.83 | -55.62 | 75.25 | 0.8235 | -397.0 | -317.3 | |
| 0.00 | 1.05 | 0.00 | 0.89 | 12.01 | 61.11 | -54.35 | 79.83 | 0.8097 | -517.0 | -427.8 | |
| 0.00 | 1.05 | 0.00 | 0.89 | 11.81 | 61.01 | -54.45 | 80.07 | 0.8107 | -372.0 | -297.8 | |
| 0.00 | 0.88 | 0.00 | 0.74 | 12.04 | 60.83 | -54.62 | 79.79 | 0.8125 | -331.0 | -247.2 | |
| 0.00 | 0.88 | 0.00 | 0.76 | 14.35 | 59.95 | -55.50 | 76.99 | 0.8217 | -356.0 | -289.1 | |
| 0.00 | 1.85 | 0.00 | 1.59 | 13.22 | 60.03 | -55.43 | 78.36 | 0.8206 | -341.0 | -362.7 | |
| 0.53 | 1.93 | 0.46 | 1.69 | 13.02 | 59.54 | -55.91 | 78.61 | 0.8253 | -292.3 | -205.1 | |
| 0.00 | 1.05 | 0.00 | 0.93 | 13.55 | 59.25 | -56.21 | 77.98 | 0.8282 | 234.0 | 178.2 | |
| 0.00 | 1.23 | 0.00 | 1.10 | 12.82 | 58.61 | -56.85 | 78.88 | 0.8341 | 721.0 | 616.5 | |
| 0.00 | 1.49 | 0.00 | 1.36 | 14.49 | 57.86 | -57.60 | 76.89 | 0.8414 | -287.0 | -266.9 | |
| 0.00 | 1.14 | 0.00 | 1.08 | 16.74 | 56.43 | -59.03 | 74.30 | 0.8550 | -486.0 | -309.8 | |
| 0.00 | 0.70 | 0.00 | 0.65 | 12.70 | 57.38 | -58.07 | 79.03 | 0.8455 | 379.0 | 263.4 | |
| 0.00 | 1.23 | 0.00 | 1.14 | 12.28 | 57.06 | -58.39 | 79.54 | 0.8484 | 272.0 | 303.3 | |
| 0.00 | 0.79 | 0.00 | 0.83 | 10.14 | 52.93 | -62.53 | 81.93 | 0.8840 | 371.0 | 327.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
