SDO HMI 2014-10-06 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.25 | 15.82 | 6.09 | 15.37 | -12.91 | 58.98 | -56.48 | 109.18 | 0.8622 | 59.4 | 129.3 | |
|
previous
or next observation for the same group /

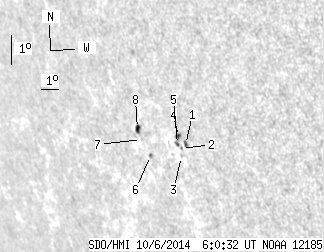

back to the solar disc SDO HMI 2014-10-06 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.97 | 2.55 | 0.91 | 2.40 | -12.92 | 60.16 | -55.30 | 109.55 | 0.8524 | 649.4 | 532.9 | |
| 0.00 | 1.05 | 0.00 | 1.00 | -13.07 | 59.89 | -55.57 | 109.64 | 0.8551 | 552.0 | 431.0 | |
| 0.00 | 1.14 | 0.00 | 1.09 | -13.33 | 59.80 | -55.66 | 109.90 | 0.8565 | 512.0 | 385.1 | |
| 1.41 | 4.75 | 1.33 | 4.51 | -12.70 | 59.85 | -55.60 | 109.20 | 0.8545 | 511.9 | 346.1 | |
| 0.79 | -4.00 | 0.75 | -4.00 | -12.96 | 59.71 | -55.75 | 109.46 | 0.8564 | 364.4 | 999999 | |
| 0.53 | 1.67 | 0.53 | 1.67 | -13.47 | 58.00 | -57.46 | 109.50 | 0.8717 | -558.7 | -467.9 | |
| 0.00 | 0.44 | 0.00 | 0.44 | -13.00 | 57.66 | -57.80 | 108.88 | 0.8734 | -542.0 | -489.8 | |
| 2.55 | 4.22 | 2.57 | 4.26 | -12.67 | 57.55 | -57.91 | 108.48 | 0.8735 | -478.9 | -313.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
