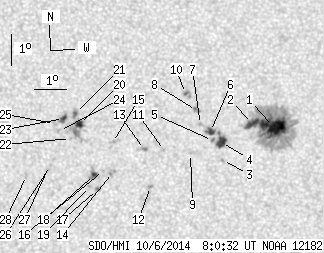

SDO HMI 2014-10-06 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.58 | 243.33 | 31.75 | 129.63 | -13.88 | 121.25 | 6.88 | 198.42 | 0.3692 | 411.7 | 186.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.79 | 155.45 | 15.91 | 83.01 | -13.77 | 122.95 | 8.58 | 202.83 | 0.3752 | 1281.8 | 401.0 | |
| 7.73 | -1.00 | 4.12 | -1.00 | -13.66 | 122.29 | 7.93 | 201.35 | 0.3696 | 1107.2 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.83 | 121.39 | 7.03 | 198.09 | 0.3826 | 692.0 | 532.4 | |
| 6.85 | 11.16 | 3.66 | 5.95 | -14.26 | 121.34 | 6.98 | 198.46 | 0.3734 | 1011.7 | 849.7 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -14.19 | 121.06 | 6.70 | 197.82 | 0.3710 | 762.0 | 666.9 | |
| 3.87 | 6.33 | 2.06 | 3.37 | -13.90 | 120.99 | 6.63 | 197.89 | 0.3661 | 1074.0 | 779.6 | |
| 0.00 | 1.93 | 0.00 | 1.03 | -13.67 | 120.67 | 6.31 | 197.28 | 0.3610 | 1003.0 | 723.3 | |
| 0.00 | 3.69 | 0.00 | 1.95 | -13.22 | 120.54 | 6.17 | 197.31 | 0.3534 | 920.0 | 803.1 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -14.59 | 120.39 | 6.02 | 195.82 | 0.3741 | 691.0 | 522.9 | |
| 0.70 | 4.22 | 0.37 | 2.22 | -12.68 | 120.18 | 5.82 | 196.84 | 0.3431 | 1112.1 | 856.4 | |
| 0.00 | 0.62 | 0.00 | 0.33 | -14.49 | 119.57 | 5.21 | 193.84 | 0.3691 | -617.0 | -413.4 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -15.64 | 119.16 | 4.80 | 192.11 | 0.3859 | -1042.0 | -860.2 | |
| 0.00 | 2.90 | 0.00 | 1.54 | -14.45 | 118.95 | 4.59 | 192.27 | 0.3662 | -918.0 | -789.8 | |
| 0.00 | 3.60 | 0.00 | 1.92 | -15.18 | 117.97 | 3.61 | 189.36 | 0.3749 | -721.0 | -710.7 | |
| 0.00 | 1.76 | 0.00 | 0.93 | -14.21 | 117.95 | 3.59 | 189.77 | 0.3594 | 812.0 | 692.2 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -15.11 | 117.69 | 3.33 | 188.67 | 0.3731 | -319.0 | -276.6 | |
| 0.62 | 2.20 | 0.33 | 1.18 | -15.73 | 117.51 | 3.15 | 187.98 | 0.3825 | -862.4 | -685.2 | |
| 2.02 | 6.68 | 1.08 | 3.56 | -15.24 | 117.41 | 3.05 | 187.91 | 0.3745 | -993.3 | -784.6 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -15.63 | 117.26 | 2.90 | 187.38 | 0.3804 | -737.0 | -547.3 | |
| 4.31 | 18.28 | 2.27 | 9.66 | -13.63 | 116.93 | 2.56 | 187.22 | 0.3474 | -956.7 | -483.4 | |
| 0.97 | 4.57 | 0.51 | 2.41 | -13.28 | 116.80 | 2.44 | 186.99 | 0.3414 | -1199.2 | -887.6 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -14.08 | 116.65 | 2.29 | 186.31 | 0.3542 | -707.0 | -485.7 | |
| 2.72 | 4.92 | 1.44 | 2.59 | -13.44 | 116.43 | 2.07 | 185.90 | 0.3433 | -1153.4 | -939.0 | |
| 0.00 | 1.67 | 0.00 | 0.88 | -13.82 | 116.31 | 1.95 | 185.45 | 0.3494 | -888.0 | -617.9 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -13.59 | 116.16 | 1.79 | 185.07 | 0.3455 | -752.0 | -610.9 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -14.94 | 116.04 | 1.68 | 184.44 | 0.3673 | -852.0 | -604.6 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -15.07 | 115.95 | 1.59 | 184.17 | 0.3693 | -937.0 | -736.5 | |
| 0.00 | 1.85 | 0.00 | 0.98 | -15.26 | 115.30 | 0.93 | 182.43 | 0.3718 | -816.0 | -705.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
