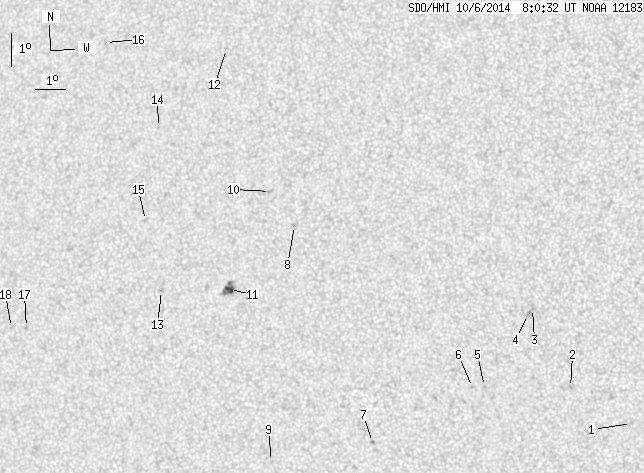

SDO HMI 2014-10-06 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.39 | 38.32 | 2.41 | 20.92 | 13.63 | 90.93 | -23.43 | 70.79 | 0.4104 | 8.7 | 137.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.67 | 9.78 | 102.61 | -11.76 | 73.24 | 0.2107 | -729.0 | -587.9 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 10.81 | 100.66 | -13.70 | 71.17 | 0.2470 | -859.0 | -707.0 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 13.16 | 99.33 | -15.03 | 64.46 | 0.2811 | -853.0 | -645.8 | |
| 0.00 | 2.72 | 0.00 | 1.41 | 13.01 | 99.21 | -15.15 | 65.12 | 0.2819 | -861.0 | -768.5 | |
| 0.00 | 1.41 | 0.00 | 0.73 | 10.77 | 97.94 | -16.42 | 73.95 | 0.2903 | -751.0 | -527.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | 10.73 | 97.56 | -16.80 | 74.38 | 0.2962 | -715.0 | -614.9 | |
| 0.00 | 1.49 | 0.00 | 0.79 | 8.97 | 94.45 | -19.91 | 81.43 | 0.3416 | -829.0 | -702.9 | |
| 0.00 | 2.37 | 0.00 | 1.29 | 15.40 | 91.34 | -23.02 | 66.46 | 0.4130 | 898.0 | 627.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 8.27 | 91.20 | -23.16 | 84.01 | 0.3930 | -768.0 | -578.6 | |
| 0.00 | 2.28 | 0.00 | 1.25 | 16.40 | 90.40 | -23.96 | 64.95 | 0.4319 | 753.0 | 617.2 | |
| 4.39 | 12.48 | 2.41 | 6.85 | 13.37 | 89.36 | -25.00 | 72.34 | 0.4333 | 1131.9 | 780.7 | |
| 0.00 | 1.32 | 0.00 | 0.75 | 20.70 | 88.19 | -26.17 | 58.08 | 0.4881 | 681.0 | 471.3 | |
| 0.00 | 1.58 | 0.00 | 0.89 | 13.23 | 87.04 | -27.32 | 73.73 | 0.4673 | 806.0 | 627.2 | |
| 0.00 | 0.88 | 0.00 | 0.50 | 18.16 | 86.21 | -28.15 | 64.30 | 0.4995 | 635.0 | 475.3 | |
| 0.00 | 2.11 | 0.00 | 1.19 | 15.32 | 86.21 | -28.15 | 69.85 | 0.4868 | 694.0 | 563.0 | |
| 0.00 | 1.32 | 0.00 | 0.78 | 20.66 | 83.78 | -30.58 | 61.33 | 0.5446 | 695.0 | 490.0 | |
| 0.00 | 1.67 | 0.00 | 0.97 | 11.87 | 82.44 | -31.92 | 77.88 | 0.5314 | -737.0 | -579.1 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 11.84 | 81.90 | -32.46 | 78.06 | 0.5391 | -620.0 | -461.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
