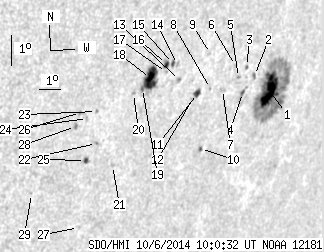

SDO HMI 2014-10-06 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.90 | 218.39 | 45.67 | 185.98 | -12.14 | 164.56 | 51.29 | 249.97 | 0.8132 | 41.8 | 60.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.00 | 137.49 | 23.01 | 122.13 | -12.27 | 166.32 | 53.05 | 250.47 | 0.8307 | 807.1 | 131.0 | |
| 0.61 | 2.20 | 0.53 | 1.89 | -11.72 | 165.40 | 52.13 | 250.80 | 0.8207 | 673.6 | 575.3 | |
| 0.35 | 1.41 | 0.30 | 1.20 | -11.39 | 164.91 | 51.65 | 251.02 | 0.8152 | 582.8 | 543.2 | |
| 1.05 | 4.57 | 0.90 | 3.91 | -12.21 | 164.93 | 51.66 | 250.07 | 0.8177 | 610.2 | 476.1 | |
| 0.00 | 1.14 | 0.00 | 0.97 | -11.70 | 164.60 | 51.33 | 250.54 | 0.8131 | 683.0 | 568.5 | |
| 0.00 | 0.97 | 0.00 | 0.81 | -11.31 | 164.35 | 51.08 | 250.92 | 0.8095 | 571.0 | 526.5 | |
| 0.00 | 3.25 | 0.00 | 2.72 | -12.02 | 163.90 | 50.63 | 249.92 | 0.8073 | 275.0 | 204.5 | |
| 0.00 | 1.05 | 0.00 | 0.87 | -11.93 | 163.30 | 50.03 | 249.80 | 0.8012 | -452.0 | -328.3 | |
| 0.00 | 0.70 | 0.00 | 0.57 | -10.81 | 163.03 | 49.76 | 251.04 | 0.7951 | -503.0 | -472.9 | |
| 0.70 | 1.93 | 0.59 | 1.62 | -13.83 | 163.33 | 50.07 | 247.57 | 0.8077 | -436.1 | -353.2 | |
| 2.46 | 4.66 | 2.00 | 3.79 | -12.04 | 162.70 | 49.44 | 249.45 | 0.7957 | 637.6 | 515.2 | |
| 0.00 | 1.67 | 0.00 | 1.35 | -12.17 | 162.50 | 49.23 | 249.21 | 0.7942 | 382.0 | 314.6 | |
| 0.00 | 2.37 | 0.00 | 1.88 | -11.54 | 161.74 | 48.47 | 249.68 | 0.7845 | 687.0 | 530.1 | |
| 0.00 | 2.20 | 0.00 | 1.73 | -11.02 | 161.53 | 48.26 | 250.23 | 0.7806 | -434.0 | -309.3 | |
| 0.97 | 2.46 | 0.76 | 1.93 | -10.98 | 161.34 | 48.07 | 250.21 | 0.7784 | -552.1 | -448.2 | |
| 2.02 | 4.48 | 1.58 | 3.50 | -10.98 | 161.02 | 47.75 | 250.09 | 0.7752 | -693.7 | -483.3 | |
| 0.00 | 1.05 | 0.00 | 0.83 | -11.23 | 161.07 | 47.80 | 249.79 | 0.7766 | -433.0 | -363.8 | |
| 18.63 | 29.08 | 14.40 | 22.48 | -11.36 | 160.37 | 47.11 | 249.36 | 0.7698 | -773.1 | -339.9 | |
| 0.53 | -18.00 | 0.41 | -18.00 | -11.65 | 160.08 | 46.81 | 248.88 | 0.7678 | -595.5 | 999999 | |
| 0.00 | 1.49 | 0.00 | 1.14 | -11.77 | 159.70 | 46.43 | 248.57 | 0.7643 | -419.0 | -323.4 | |
| 0.00 | 1.58 | 0.00 | 1.22 | -14.01 | 159.30 | 46.03 | 245.64 | 0.7688 | -550.0 | -472.1 | |
| 0.00 | 1.14 | 0.00 | 0.86 | -13.24 | 158.40 | 45.13 | 246.18 | 0.7564 | -670.0 | -590.7 | |
| 0.00 | 1.23 | 0.00 | 0.92 | -12.21 | 158.17 | 44.90 | 247.36 | 0.7498 | -595.0 | -539.1 | |
| 0.00 | 1.32 | 0.00 | 0.98 | -12.40 | 157.82 | 44.55 | 246.96 | 0.7469 | -726.0 | -597.9 | |
| 1.58 | 2.72 | 1.19 | 2.05 | -13.75 | 158.04 | 44.77 | 245.38 | 0.7548 | -629.4 | -495.6 | |
| 0.00 | 2.02 | 0.00 | 1.49 | -12.18 | 157.47 | 44.20 | 247.07 | 0.7423 | -639.0 | -561.0 | |
| 0.00 | 1.23 | 0.00 | 0.95 | -15.91 | 158.30 | 45.03 | 242.88 | 0.7668 | -156.0 | -158.5 | |
| 0.00 | 2.28 | 0.00 | 1.68 | -12.62 | 157.35 | 44.08 | 246.47 | 0.7427 | -771.0 | -663.5 | |
| 0.00 | 0.70 | 0.00 | 0.51 | -14.63 | 155.93 | 42.66 | 243.24 | 0.7367 | -520.0 | -415.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
