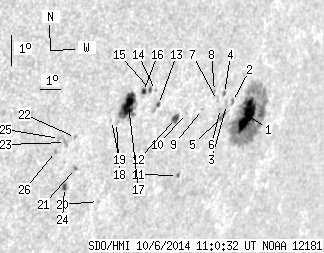

SDO HMI 2014-10-06 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.22 | 223.90 | 47.59 | 193.32 | -12.10 | 164.66 | 51.94 | 250.24 | 0.8192 | 120.3 | 66.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-06 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.28 | 143.18 | 25.40 | 128.95 | -12.26 | 166.38 | 53.66 | 250.68 | 0.8363 | 785.6 | 127.1 | |
| 0.00 | 2.02 | 0.00 | 1.77 | -11.74 | 165.46 | 52.74 | 250.98 | 0.8264 | 619.0 | 608.9 | |
| 0.00 | 2.28 | 0.00 | 1.98 | -11.81 | 165.17 | 52.45 | 250.81 | 0.8239 | 657.0 | 591.2 | |
| 0.44 | 1.67 | 0.38 | 1.44 | -11.44 | 164.98 | 52.26 | 251.16 | 0.8211 | 561.4 | 536.0 | |
| 1.49 | 3.34 | 1.30 | 2.90 | -12.17 | 165.07 | 52.35 | 250.35 | 0.8240 | 635.8 | 539.3 | |
| 0.00 | 0.97 | 0.00 | 0.83 | -11.91 | 164.90 | 52.18 | 250.60 | 0.8217 | 407.0 | 355.5 | |
| 0.00 | 0.88 | 0.00 | 0.75 | -11.63 | 164.68 | 51.95 | 250.84 | 0.8188 | 557.0 | 540.8 | |
| 0.00 | 1.05 | 0.00 | 0.90 | -11.33 | 164.45 | 51.73 | 251.12 | 0.8158 | 506.0 | 440.7 | |
| 0.00 | 0.61 | 0.00 | 0.52 | -11.85 | 163.99 | 51.27 | 250.34 | 0.8129 | 294.0 | 241.4 | |
| 0.00 | 0.88 | 0.00 | 0.73 | -11.91 | 163.22 | 50.50 | 250.00 | 0.8057 | -390.0 | -385.0 | |
| 0.53 | 1.76 | 0.45 | 1.49 | -13.87 | 163.33 | 50.61 | 247.73 | 0.8130 | -445.5 | -389.7 | |
| 3.43 | 5.97 | 2.82 | 4.92 | -12.02 | 162.72 | 50.00 | 249.68 | 0.8012 | 633.6 | 453.8 | |
| 0.88 | 4.48 | 0.71 | 3.60 | -11.50 | 161.79 | 49.07 | 249.96 | 0.7903 | 591.7 | 453.5 | |
| 0.00 | 0.97 | 0.00 | 0.77 | -11.04 | 161.54 | 48.82 | 250.42 | 0.7863 | -308.0 | -254.3 | |
| 0.79 | 2.28 | 0.63 | 1.81 | -10.99 | 161.30 | 48.58 | 250.40 | 0.7837 | -518.8 | -391.8 | |
| 1.41 | 3.43 | 1.11 | 2.70 | -11.02 | 160.98 | 48.26 | 250.23 | 0.7805 | -715.5 | -574.2 | |
| 17.48 | 32.15 | 13.65 | 25.14 | -11.38 | 160.37 | 47.65 | 249.56 | 0.7755 | -804.4 | -266.4 | |
| 0.00 | 2.46 | 0.00 | 1.91 | -11.90 | 159.94 | 47.22 | 248.74 | 0.7729 | -155.0 | -218.3 | |
| 0.00 | 0.70 | 0.00 | 0.54 | -11.82 | 159.70 | 46.98 | 248.74 | 0.7701 | -667.0 | -420.5 | |
| 0.00 | 0.44 | 0.00 | 0.35 | -14.38 | 159.75 | 47.03 | 245.65 | 0.7803 | -468.0 | -404.4 | |
| 0.00 | 1.32 | 0.00 | 1.00 | -13.22 | 158.42 | 45.70 | 246.46 | 0.7622 | -597.0 | -593.9 | |
| 0.00 | 1.41 | 0.00 | 1.06 | -12.23 | 158.19 | 45.47 | 247.59 | 0.7559 | -706.0 | -529.4 | |
| 0.00 | 2.72 | 0.00 | 2.04 | -12.35 | 157.78 | 45.05 | 247.26 | 0.7520 | -666.0 | -596.7 | |
| 1.49 | 3.07 | 1.14 | 2.34 | -13.79 | 158.07 | 45.35 | 245.60 | 0.7610 | -668.6 | -510.4 | |
| 0.00 | 2.81 | 0.00 | 2.09 | -12.20 | 157.48 | 44.76 | 247.31 | 0.7483 | -714.0 | -511.3 | |
| 0.00 | 1.05 | 0.00 | 0.79 | -12.60 | 157.40 | 44.68 | 246.77 | 0.7490 | -730.0 | -691.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
